SKU

FAM6292

Rear Subframe - Genuine - pre 1991

Name: Rear Subframe - Genuine - pre 1991
SKU: FAM6292
Price: 592.176001 USD
Availability: InStock

Be the first to review this product

Special Price US$592.18 US$493.48 Regular Price US$620.17

In stock

SKU

FAM6292

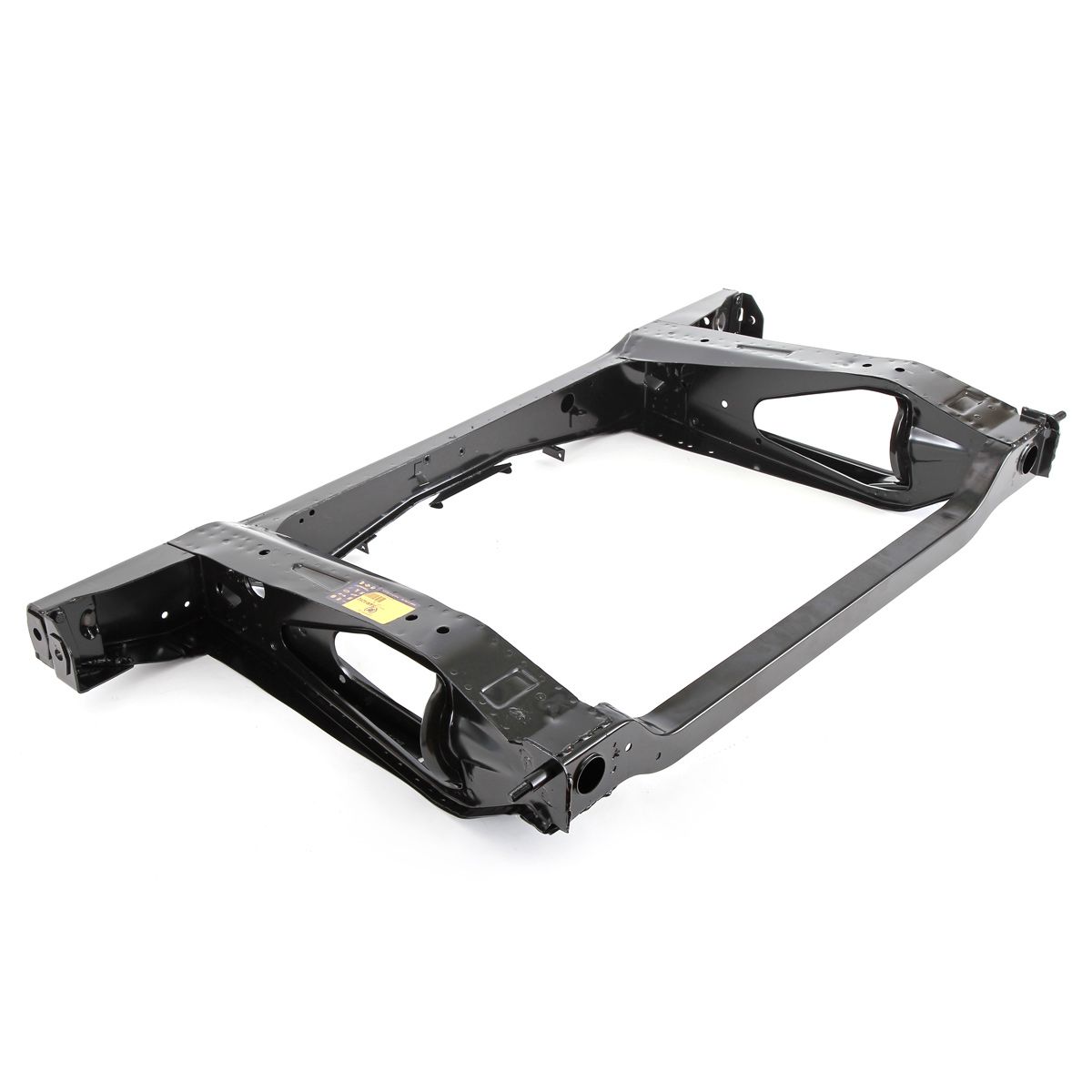

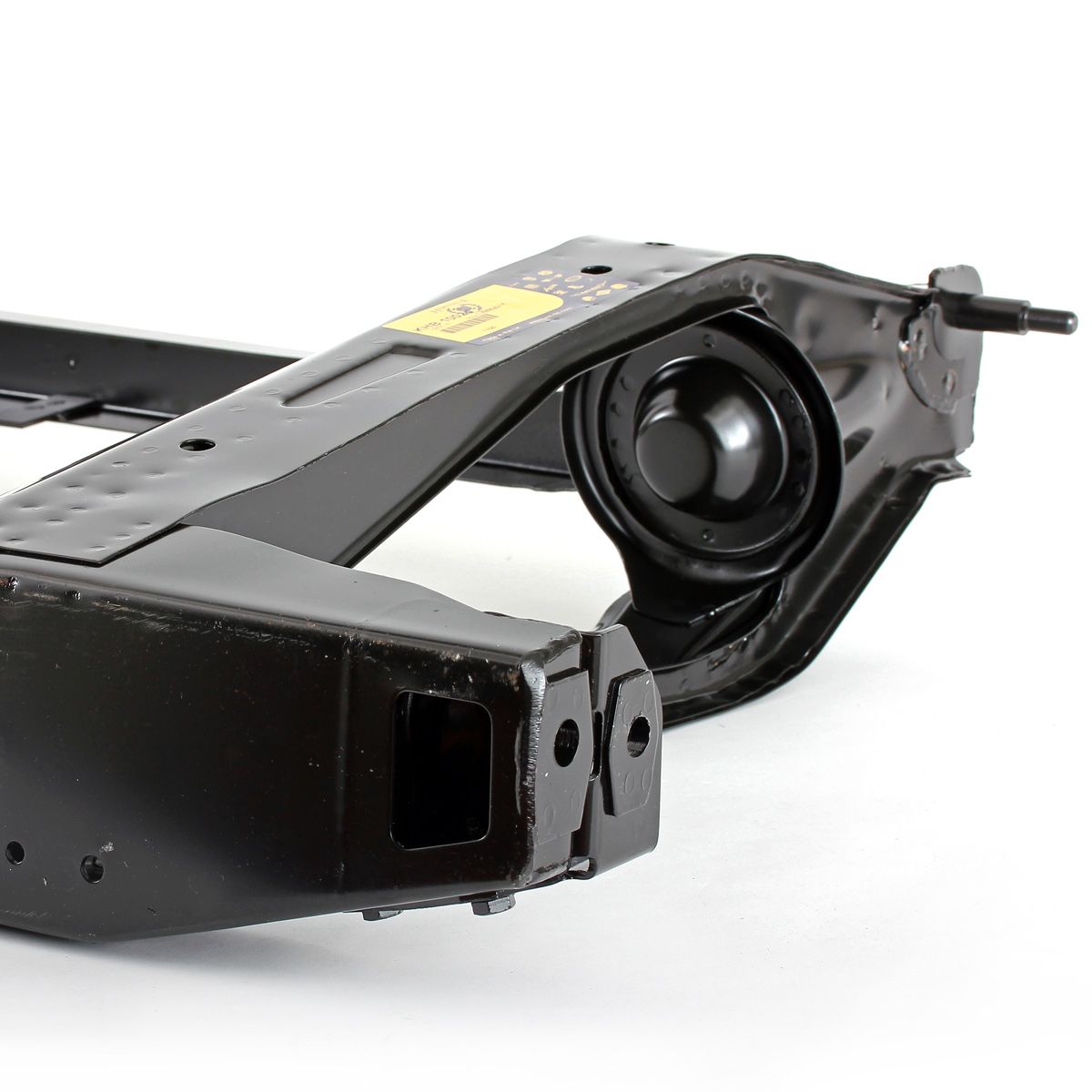

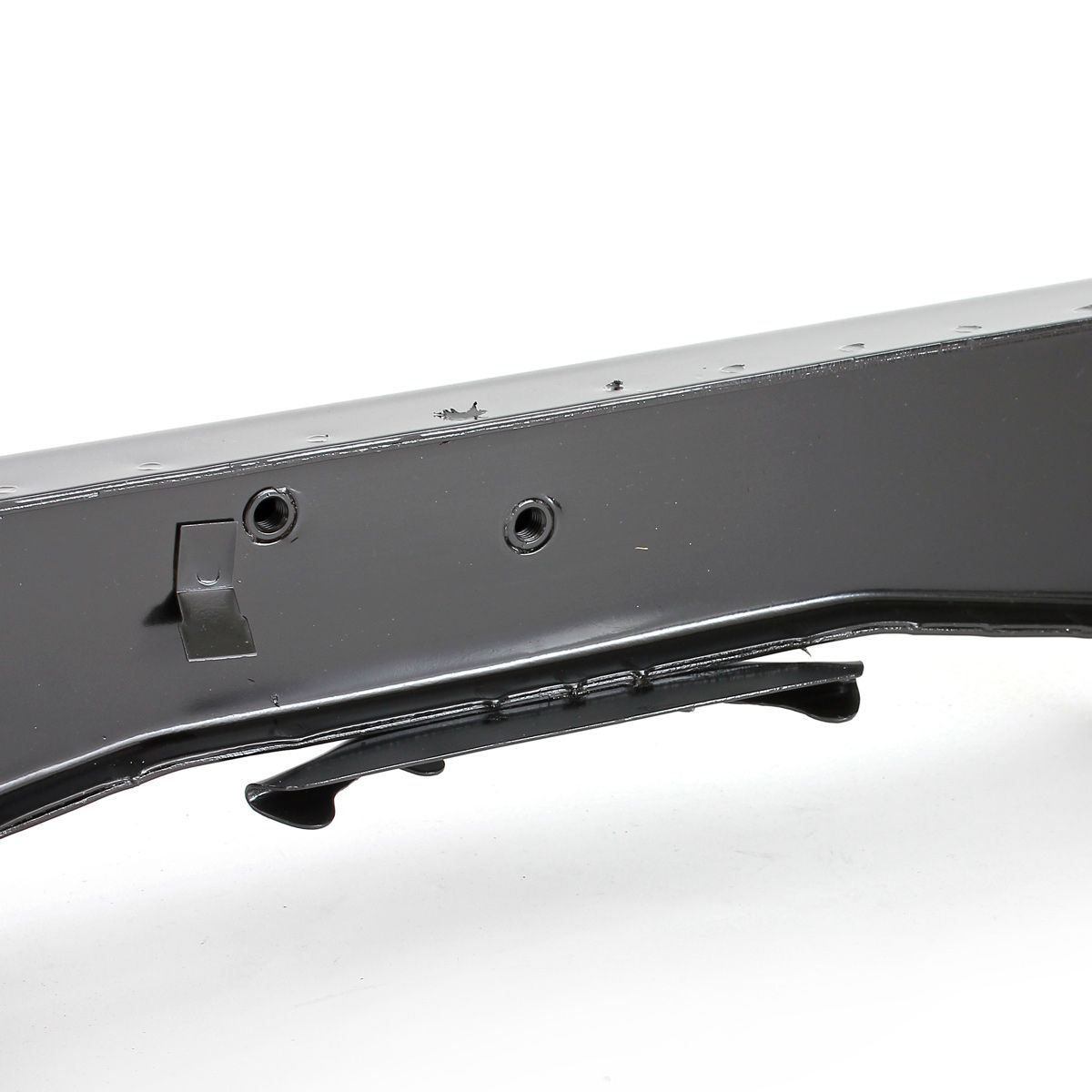

Mini rear subframe for all dry suspension Mini models up to 1991

Frequently Bought Together

Rear Subframe - Genuine - pre 1991
Special Price US$596.52 US$497.10 Regular Price US$624.73
Rear Subframe Mega Fitting Kit - Stainless Steel
Special Price US$101.14 US$84.28 Regular Price US$110.86
Brake Light Switch - Mini Pre '76
Special Price US$7.28 US$6.07 Regular Price US$8.11
Knuckle Joint - Adjusta Ride each
Special Price US$9.32 US$7.77 Regular Price US$10.97
Genuine Moulton Rubber Cone Spring for Mini Suspension
US$74.41 US$62.01

Details

FAM6292 genuine replacement rear subframe to suit all dry suspension Mini models up to 1991, without the fixed exhaust hangers.

This rear subframe is manufactured by British Motor Heritage using the original tooling and jigs, ensuring that this is the best replacement part for your Mini if a new subframe is required.

For ease of fitment we recommend you use the Heritage HMP841014 subframe fitting kit.

Buy genuine Mini subframes and Mini suspension parts from Mini Sport, the world's premier online Mini store!

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	All (Hydrolastic) wet suspension models		21A2160
1	'59-'91 dry suspension models - no exhaust hangers		FAM6292
1	'92-'97 models with exhaust hangers		KHB10023
1	Sportspack '97-'01		KHB100590
1	Automatic Subframe assembly - '92-'97		KHB10024
1	KHB10024 including trunnions & bushes (as pic)		KHB10026
	Genuine - Mk4 built up and ready to fit		HMP241002
1	'59-'91 dry suspension models - no exhaust hangers		40-10-007
1	'59-'91 models - no exhaust hangers powder coated		40-10-007PC
1	'91-'97 dry suspension models - with exhaust hangers		40-10-008
1	'91-'97 models - exhaust hangers powder coated		40-10-008PC
1	All (Hydrolastic) wet suspension models)		40-10-006
2	RH radius arm/subframe bracket, each		21A195
3	LH radius arm/subframe bracket, each		21A197
7	Rear subframe fitting kit (as pic)		HMP841014
8	Rear trunnion pin, each		21A1440
9	Rear mounting bush, late, each		21A2560
9	Poly bush kit - late (red or black)		SPDSP664A
9	Nylon bush kit - late		MSLMS0531
10	Rear mounting bush - early, each		2A5818
10	Poly bush kit - early (red or black)		SPDSP662A
10	Nylon bush kit - early		MSLMS0532
11	Spring washer	each	GFK1125
12	Long trunnion bolt	each	SH605181
12	Short trunnion bolt	each	GFK5185
13	Nyloc nut	each	GFK3323
14	Washer	each	PWZ207
15	Washer - 5/16"	each	GFK1114
16	Nut - 5/16" UNF	each	GFK3322
17	Set Screw - trunnion 5/16" UNF	each	BH605201
18	Trunnion (rectangle), each		21A2558
19	Trunnion (step), each		2A5819
