SKU

C16062

Brake Light Switch - Mini Pre '76

Name: Brake Light Switch - Mini Pre '76
SKU: C16062
Price: 8.112001 USD
Availability: InStock

Be the first to review this product

US$8.11 US$6.76

In stock

SKU

C16062

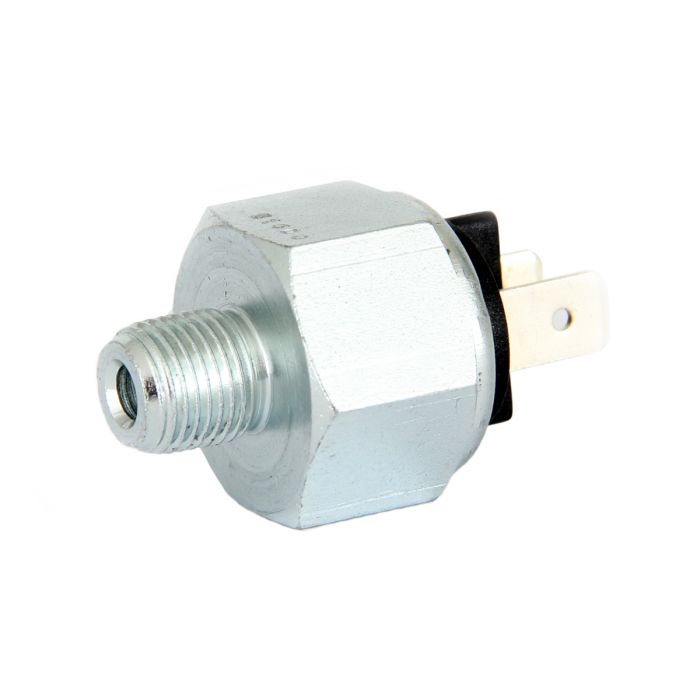

Pre 1976 Mini hydraulic brake light switch.

Frequently Bought Together

Brake Light Switch - Mini Pre '76
US$8.05 US$6.71
Banjo Bolt - Brake Light Switch
US$12.46 US$10.38
Oil Filler Cap - Vented - Black
US$9.96 US$8.30
Horn - Low Tone Single Wire
US$16.49 US$13.74
Plastic Vacuum Pipe Kit Distributor to Carb
US$6.80 US$5.67

Details

This hydraulic brake light switch was used on all pre 1976 single line brake system Minis and was fitted into the banjo bolt (7H7995) on the right hand brake hose.

From 1976 onwards the Mini used a mechanical brake light switch fitted to the pedal box. See 13H3735.

Buy top quality Classic Mini, brake spares and parts from Mini Sport, the worlds premier online Mini store!

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	220mm (8.5'') m/cylinder to PR valve 10mm	- 2 x M (metric)	BP8M
1	229mm (9'') pre GMC227 to PR valve 10mm	- 2 x M (metric)	BP9M
3	356mm (14") GMC227 to PR valve 10mm	- 2 x M (metric)	BP14M
3	559mm (22") master cylinder to PR valve 10mm	Cooper SE, Cooper 1300cc and SPi- 2 x M (metric)	BP22M
3	660mm (26") master cylinder to PR valve	- 2 x M (metric)	BP26M
4	195mm (7.5'') PR valve to tube connector	- 2 x M (metric)	BP7M
6	Connector tube (metric)		BMK2466A
7	260mm (10'') tube connector to RH front hose	- 2 x M (1x metric)	BP10M
8	1093mm (43") LH to RH front hoses	- 2 x M	BP43
8	1118mm (44") RH front hose to LH front hose	- 2 x M	BP44
9	2440mm (96") PR valve to rear 3 way	- 2 x M (1x metric)	BP96M
9	2590mm (102") PR valve to rear 3 way	- 2 x M (1x metric)	BP102M
10	3 way connector - rear subframe, each		3H2424
11	Set Screw - 3 way to rear subframe	- 1/4" UNF x 1 1/4"	SH604091
12	Spring Washer	- 1/4"	GFK1124
13	Nut	- 1/4" UNF	GFK3211
	610mm (24") rear regulating valve to LH hose	- 1 x M, 1 x F	BP24
14	640mm (25") 3 way LH rear Hose	- 1 x M, 1 x F	BP25
15	152mm (6'') 3 way to RH rear hose	- 1 x M, 1 x F152mm (6'') rear regulating valve to RH hose	BP6
16	Rubber Hose standard	front disc type	GBH249
16	Rubber Hose standard	front drum type	GBH170
17	Banjo connector - 2 way		21A654
18	Banjo Bolt connetor for stoplight switch (C16062)		7H7995
18	Banjo Bolt (no switch)		C5192A
18	Brake light switch	- pre '76	C16062
19	Copper Washer - front hose to banjo		233220A
20	Copper Washer - banjo to banjo bolt		3H550
21	Lock Nut - RH front hose to subframe		21A228
22	Lock Nut - LH front hose to subframe		2K8686
23	Lock Washer		WE600101
24	Regulator valve, all Mk1/2 to '69 inc Cooper S		21A1774
24	Regulator valve, Mk3 '69 to '78		21A2031
26	Standard Rubber Hose Rear each		GBH250
27	Lock Nut - rear hose to radius arm		NT606041
28	Lock Washer - rear hose to radius arm & rear subframe		GHF323
29	254mm (10'') rear hose to wheel cylinder	- 1 x M, 1 x F	BP10
30	Clip - brake pipe to front subframe		11K9181
	Clip - pipe to master cylinder,	LHD '88on	AAU7803A
