SKU

KHB100590

Rear Subframe - Genuine - Mini Sportspack Type 97 on

Name: Rear Subframe - Genuine - Mini Sportspack Type 97 on
SKU: KHB100590
Price: 620.172001 USD
Availability: InStock

Be the first to review this product

US$620.17 US$516.81

In stock

SKU

KHB100590

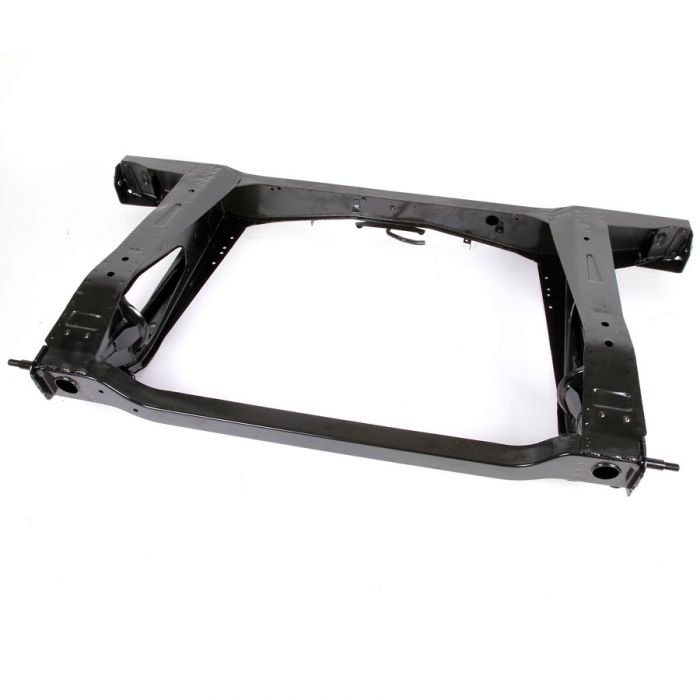

Genuine Mini rear subframe 1997on Sportspack type

KHB10059 Mini Rear Subframe - Genuine - Mini Sportspack Type 97 on

Frequently Bought Together

Rear Subframe - Genuine - Mini Sportspack Type 97 on
US$620.17 US$516.81
Rear Subframe Mega Fitting Kit - Stainless Steel
US$109.24 US$91.03
Front Subframe Mini '90-'96 - Genuine
US$652.81 US$544.01
Rear Subframe Mounting Bush kit - Genuine
US$89.45 US$74.54
Grill Side Surround Seating Strip Mini Mk2on
US$6.89 US$5.74

Details

KHB100590 genuine strengthend rear subframe to suit 1997on Sportspack Minis with the heavier 13" alloy wheels.

This Mini rear subframe is manufactured by British Motor Heritage using the original tooling and jigs, ensuring that this is the best replacement part for your Mini if a new subframe is required. This can be used as a direct replacement on any Mini from 1991.

For ease of fitment we recommend you use the Heritage HMP841014 subframe fitting kit, as this contains all the bolts and bushes needed for the job.

Buy genuine Mini subframes and Mini suspension parts from Mini Sport, the world's premier online Mini store!

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	All (Hydrolastic) wet suspension models		21A2160
1	'59-'91 dry suspension models - no exhaust hangers		FAM6292
1	'92-'97 models with exhaust hangers		KHB10023
1	Sportspack '97-'01		KHB100590
1	Automatic Subframe assembly - '92-'97		KHB10024
1	KHB10024 including trunnions & bushes (as pic)		KHB10026
	Genuine - Mk4 built up and ready to fit		HMP241002
1	'59-'91 dry suspension models - no exhaust hangers		40-10-007
1	'59-'91 models - no exhaust hangers powder coated		40-10-007PC
1	'91-'97 dry suspension models - with exhaust hangers		40-10-008
1	'91-'97 models - exhaust hangers powder coated		40-10-008PC
1	All (Hydrolastic) wet suspension models)		40-10-006
2	RH radius arm/subframe bracket, each		21A195
3	LH radius arm/subframe bracket, each		21A197
7	Rear subframe fitting kit (as pic)		HMP841014
8	Rear trunnion pin, each		21A1440
9	Rear mounting bush, late, each		21A2560
9	Poly bush kit - late (red or black)		SPDSP664A
9	Nylon bush kit - late		MSLMS0531
10	Rear mounting bush - early, each		2A5818
10	Poly bush kit - early (red or black)		SPDSP662A
10	Nylon bush kit - early		MSLMS0532
11	Spring washer	each	GFK1125
12	Long trunnion bolt	each	SH605181
12	Short trunnion bolt	each	GFK5185
13	Nyloc nut	each	GFK3323
14	Washer	each	PWZ207
15	Washer - 5/16"	each	GFK1114
16	Nut - 5/16" UNF	each	GFK3322
17	Set Screw - trunnion 5/16" UNF	each	BH605201
18	Trunnion (rectangle), each		21A2558
19	Trunnion (step), each		2A5819
