Rear Subframe Mounting Trunnion - Stepped type

Name: Rear Subframe Mounting Trunnion - Stepped type
SKU: 2A5819
Price: 32.184001 USD
Availability: InStock

Be the first to review this product

Special Price US$32.18 US$26.82 Regular Price US$37.86

In stock

SKU

2A5819

Mini rear subframe mounting trunnion - stepped type

Frequently Bought Together

Rear Subframe Mounting Trunnion - Stepped type
Special Price US$32.18 US$26.82 Regular Price US$37.86
Rear Subframe Trunnion pin each
Special Price US$17.83 US$14.86 Regular Price US$21.22
Rear Subframe Front Mounting Trunnion
Special Price US$34.96 US$29.13 Regular Price US$41.12
Rear Subframe Mega Fitting Kit - Stainless Steel
Special Price US$96.10 US$80.08 Regular Price US$110.04
Front Bumpstop - Pre 1976 twin bolt type
Special Price US$16.20 US$13.50 Regular Price US$21.59

Details

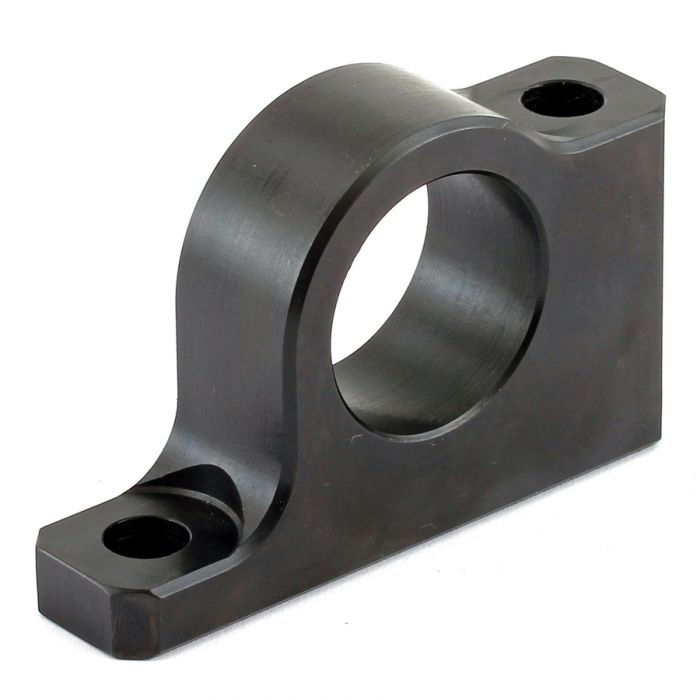

Mini rear subframe stepped mounting trunnion. This is used to mount the rear side of the subframe to the boot floor on all Mini models and the front side of the subframe to the heel board on pre 1976 models only.

Made from a steel billet by Mini Sport, this is much stronger than the original cast part it replaces.

The small rubber bush that fits into this is 2A5818. Two are needed per mounting.

Buy top quality standard and uprated Mini suspension parts from Mini Sport, the world's premier online Mini store!

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	All (Hydrolastic) wet suspension models		21A2160
1	'59-'91 dry suspension models - no exhaust hangers		FAM6292
1	'92-'97 models with exhaust hangers		KHB10023
1	Sportspack '97-'01		KHB100590
1	Automatic Subframe assembly - '92-'97		KHB10024
1	KHB10024 including trunnions & bushes (as pic)		KHB10026
	Genuine - Mk4 built up and ready to fit		HMP241002
1	'59-'91 dry suspension models - no exhaust hangers		40-10-007
1	'59-'91 models - no exhaust hangers powder coated		40-10-007PC
1	'91-'97 dry suspension models - with exhaust hangers		40-10-008
1	'91-'97 models - exhaust hangers powder coated		40-10-008PC
1	All (Hydrolastic) wet suspension models)		40-10-006
2	RH radius arm/subframe bracket, each		21A195
3	LH radius arm/subframe bracket, each		21A197
7	Rear subframe fitting kit (as pic)		HMP841014
8	Rear trunnion pin, each		21A1440
9	Rear mounting bush, late, each		21A2560
9	Poly bush kit - late (red or black)		SPDSP664A
9	Nylon bush kit - late		MSLMS0531
10	Rear mounting bush - early, each		2A5818
10	Poly bush kit - early (red or black)		SPDSP662A
10	Nylon bush kit - early		MSLMS0532
11	Spring washer	each	GFK1125
12	Long trunnion bolt	each	SH605181
12	Short trunnion bolt	each	GFK5185
13	Nyloc nut	each	GFK3323
14	Washer	each	PWZ207
15	Washer - 5/16"	each	GFK1114
16	Nut - 5/16" UNF	each	GFK3322
17	Set Screw - trunnion 5/16" UNF	each	BH605201
18	Trunnion (rectangle), each		21A2558
19	Trunnion (step), each		2A5819
