SKU

21A195

Radius Arm Support Bracket - RH

Name: Radius Arm Support Bracket - RH
SKU: 21A195
Price: 26.292001 USD
Availability: InStock

Special Price US$26.48 US$22.07 Regular Price US$28.78

In stock

SKU

21A195

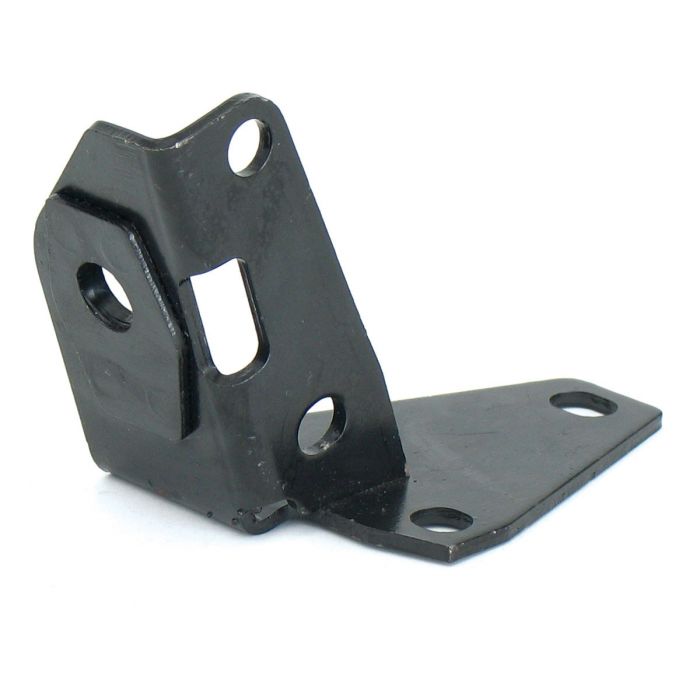

Mini rear subframe radius arm bracket - right hand

Frequently Bought Together

Radius Arm Support Bracket - RH
Special Price US$26.48 US$22.07 Regular Price US$28.78
Radius Arm Outer Support Bracket - LH
Special Price US$26.48 US$22.07 Regular Price US$28.78
Mini Rear subframe radius arm bracket fitting kit
Special Price US$14.04 US$11.70 Regular Price US$15.38
Radius Arm Spindle & Bush Recon Kit - per arm as pictured
Special Price US$22.90 US$19.08 Regular Price US$24.17

Details

Mini rear subframe right hand radius arm support bracket. Fits all Mini rear subframes from 1959-2001. The left hand bracket is 21A197.

Also available in an uprated adjustable version. See MSLMS0510

Buy top quality standard and uprated Mini suspension parts from Mini Sport, the world's premier online Mini store!

No.

Description

Notes

Part No.

1	All (Hydrolastic) wet suspension models		21A2160
1	'59-'91 dry suspension models - no exhaust hangers		FAM6292
1	'92-'97 models with exhaust hangers		KHB10023
1	Sportspack '97-'01		KHB100590
1	Automatic Subframe assembly - '92-'97		KHB10024
1	KHB10024 including trunnions & bushes (as pic)		KHB10026
	Genuine - Mk4 built up and ready to fit		HMP241002
1	'59-'91 dry suspension models - no exhaust hangers		40-10-007
1	'59-'91 models - no exhaust hangers powder coated		40-10-007PC
1	'91-'97 dry suspension models - with exhaust hangers		40-10-008
1	'91-'97 models - exhaust hangers powder coated		40-10-008PC
1	All (Hydrolastic) wet suspension models)		40-10-006
2	RH radius arm/subframe bracket, each		21A195
3	LH radius arm/subframe bracket, each		21A197
7	Rear subframe fitting kit (as pic)		HMP841014
8	Rear trunnion pin, each		21A1440
9	Rear mounting bush, late, each		21A2560
9	Poly bush kit - late (red or black)		SPDSP664A
9	Nylon bush kit - late		MSLMS0531
10	Rear mounting bush - early, each		2A5818
10	Poly bush kit - early (red or black)		SPDSP662A
10	Nylon bush kit - early		MSLMS0532
11	Spring washer	each	GFK1125
12	Long trunnion bolt	each	SH605181
12	Short trunnion bolt	each	GFK5185
13	Nyloc nut	each	GFK3323
14	Washer	each	PWZ207
15	Washer - 5/16"	each	GFK1114
16	Nut - 5/16" UNF	each	GFK3322
17	Set Screw - trunnion 5/16" UNF	each	BH605201
18	Trunnion (rectangle), each		21A2558
19	Trunnion (step), each		2A5819
