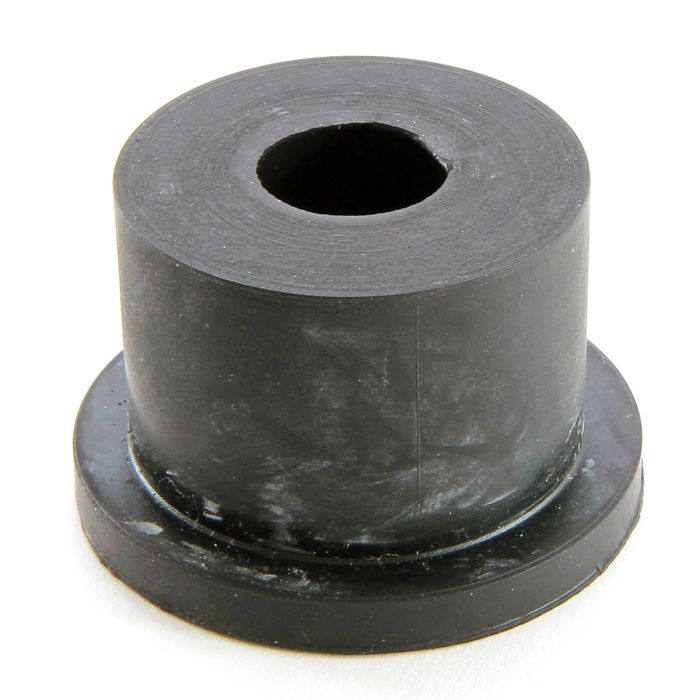

Rear Subframe Mounting Bush - large late type

Name: Rear Subframe Mounting Bush - large late type
SKU: 21A2560
Price: 6.024001 USD
Availability: InStock

Be the first to review this product

Special Price US$6.02 US$5.02 Regular Price US$8.04

In stock

SKU

21A2560

Mini rear subframe mounting bush - large late type

Frequently Bought Together

Rear Subframe Mounting Bush - large late type
Special Price US$6.07 US$5.06 Regular Price US$8.10
Rear Subframe Front Mounting Trunnion
Special Price US$34.96 US$29.13 Regular Price US$41.12
Rear Subframe Mounting Bush - small type
Special Price US$1.67 US$1.39 Regular Price US$1.82

Details

Larger type Mini rear subframe rubber mounting bush. Sold as each, 2 are fitted to all Mini's produced from 1976 onwards.

The rear subframe is mounted to the Mini chassis using 4 trunnion mountings, one at each corner. Into each of these trunnions are fitted the subframe rubber mounting bushes, which are configured slightly differently for the the early and late type Minis.

Mini 1959 - 1976 (early type) rear subframe mounting.

*8 small type rubber bushes (2A5818) - 2 per trunnion (2A5819)

Mini 1976 onwards (late type) rear subframe mounting.

*4 small type rubber bushes (2A5818) - 2 per rear trunnion (2A5819)

* 2 large type rubber bushes (21A5818) - 1 per front trunnion (21A2558)

Mini Sport offer a full range of standard rubber, or uprated Poly or Nylon bushes to suit all Mini models.

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	All (Hydrolastic) wet suspension models		21A2160
1	'59-'91 dry suspension models - no exhaust hangers		FAM6292
1	'92-'97 models with exhaust hangers		KHB10023
1	Sportspack '97-'01		KHB100590
1	Automatic Subframe assembly - '92-'97		KHB10024
1	KHB10024 including trunnions & bushes (as pic)		KHB10026
	Genuine - Mk4 built up and ready to fit		HMP241002
1	'59-'91 dry suspension models - no exhaust hangers		40-10-007
1	'59-'91 models - no exhaust hangers powder coated		40-10-007PC
1	'91-'97 dry suspension models - with exhaust hangers		40-10-008
1	'91-'97 models - exhaust hangers powder coated		40-10-008PC
1	All (Hydrolastic) wet suspension models)		40-10-006
2	RH radius arm/subframe bracket, each		21A195
3	LH radius arm/subframe bracket, each		21A197
7	Rear subframe fitting kit (as pic)		HMP841014
8	Rear trunnion pin, each		21A1440
9	Rear mounting bush, late, each		21A2560
9	Poly bush kit - late (red or black)		SPDSP664A
9	Nylon bush kit - late		MSLMS0531
10	Rear mounting bush - early, each		2A5818
10	Poly bush kit - early (red or black)		SPDSP662A
10	Nylon bush kit - early		MSLMS0532
11	Spring washer	each	GFK1125
12	Long trunnion bolt	each	SH605181
12	Short trunnion bolt	each	GFK5185
13	Nyloc nut	each	GFK3323
14	Washer	each	PWZ207
15	Washer - 5/16"	each	GFK1114
16	Nut - 5/16" UNF	each	GFK3322
17	Set Screw - trunnion 5/16" UNF	each	BH605201
18	Trunnion (rectangle), each		21A2558
19	Trunnion (step), each		2A5819
