SKU

3H2424

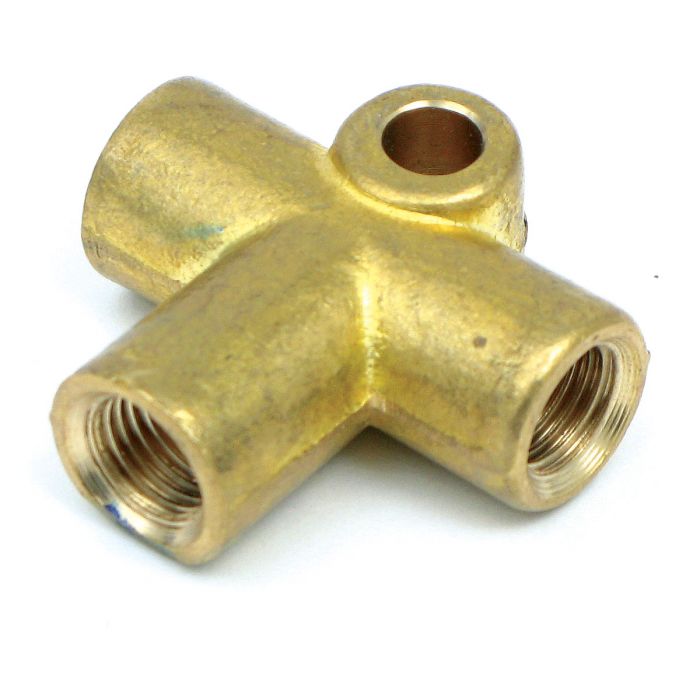

Mini Brake Line Connector - 3 Way

Name: Mini Brake Line Connector - 3 Way
SKU: 3H2424
Price: 12.732001 USD
Availability: InStock

Be the first to review this product

Special Price US$12.73 US$10.61 Regular Price US$13.68

In stock

SKU

3H2424

3 way UNF threaded brake pipe connector all Mini models 1959-2001

Frequently Bought Together

Mini Brake Line Connector - 3 Way
Special Price US$12.83 US$10.69 Regular Price US$13.78
Mini Rear Rubber Brake Hose
Special Price US$9.82 US$8.18 Regular Price US$10.85
Set Screw - 3 way to rear subframe - 1/4inch UNF x 1 1/4inch
Special Price US$0.86 US$0.72 Regular Price US$1.03
Clip - Brake Pipe To Mini Subframe
Special Price US$1.14 US$0.95 Regular Price US$1.25
Disc Brake Kit - Mini Cooper S 7.5"
Special Price US$688.57 US$573.81 Regular Price US$765.08

Details

This UNF threaded 3 way brake pipe connector is used on all Mini brake systems.

Mini single line brake system fitted to models from 1959 - 1975
1 unit per car, connecting the front brake system to the rear system, fitting to engine steady bracket on the bulkhead or to lower dash

Mini diagonal split brake system fitted to models from 1976 - 1980.
2 units per car, connecting the front brake pipes to the main brake system, 1 per side.

Mini front rear split brake systems fitted to RHD models 1978 onwards or LHD models 1980 onwards
1 unit per car, connecting the rear brake pipes to the main brake system, rear subframe right side.

Buy top quality Classic Mini spares and parts from Mini Sport, the worlds premier online Mini Store!

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	220mm (8.5'') m/cylinder to PR valve 10mm	- 2 x M (metric)	BP8M
1	229mm (9'') pre GMC227 to PR valve 10mm	- 2 x M (metric)	BP9M
3	356mm (14") GMC227 to PR valve 10mm	- 2 x M (metric)	BP14M
3	559mm (22") master cylinder to PR valve 10mm	Cooper SE, Cooper 1300cc and SPi- 2 x M (metric)	BP22M
3	660mm (26") master cylinder to PR valve	- 2 x M (metric)	BP26M
4	195mm (7.5'') PR valve to tube connector	- 2 x M (metric)	BP7M
6	Connector tube (metric)		BMK2466A
7	260mm (10'') tube connector to RH front hose	- 2 x M (1x metric)	BP10M
8	1093mm (43") LH to RH front hoses	- 2 x M	BP43
8	1118mm (44") RH front hose to LH front hose	- 2 x M	BP44
9	2440mm (96") PR valve to rear 3 way	- 2 x M (1x metric)	BP96M
9	2590mm (102") PR valve to rear 3 way	- 2 x M (1x metric)	BP102M
10	3 way connector - rear subframe, each		3H2424
11	Set Screw - 3 way to rear subframe	- 1/4" UNF x 1 1/4"	SH604091
12	Spring Washer	- 1/4"	GFK1124
13	Nut	- 1/4" UNF	GFK3211
	610mm (24") rear regulating valve to LH hose	- 1 x M, 1 x F	BP24
14	640mm (25") 3 way LH rear Hose	- 1 x M, 1 x F	BP25
15	152mm (6'') 3 way to RH rear hose	- 1 x M, 1 x F152mm (6'') rear regulating valve to RH hose	BP6
16	Rubber Hose standard	front disc type	GBH249
16	Rubber Hose standard	front drum type	GBH170
17	Banjo connector - 2 way		21A654
18	Banjo Bolt connetor for stoplight switch (C16062)		7H7995
18	Banjo Bolt (no switch)		C5192A
18	Brake light switch	- pre '76	C16062
19	Copper Washer - front hose to banjo		233220A
20	Copper Washer - banjo to banjo bolt		3H550
21	Lock Nut - RH front hose to subframe		21A228
22	Lock Nut - LH front hose to subframe		2K8686
23	Lock Washer		WE600101
24	Regulator valve, all Mk1/2 to '69 inc Cooper S		21A1774
24	Regulator valve, Mk3 '69 to '78		21A2031
26	Standard Rubber Hose Rear each		GBH250
27	Lock Nut - rear hose to radius arm		NT606041
28	Lock Washer - rear hose to radius arm & rear subframe		GHF323
29	254mm (10'') rear hose to wheel cylinder	- 1 x M, 1 x F	BP10
30	Clip - brake pipe to front subframe		11K9181
	Clip - pipe to master cylinder,	LHD '88on	AAU7803A
