SKU

40-10-008PC

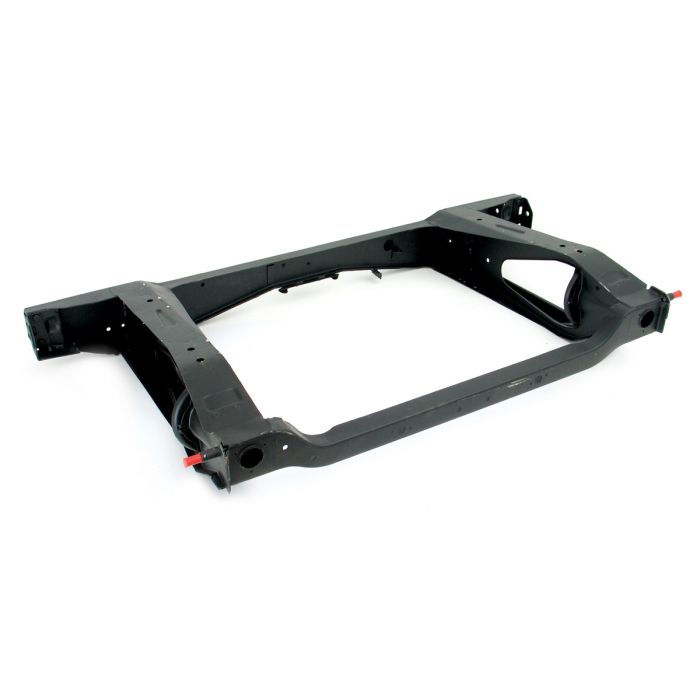

Rear Subframe - 91 on (inc hangers) - Powder Coated

Name: Rear Subframe - 91 on (inc hangers) - Powder Coated
SKU: 40-10-008PC
Price: 421.200001 USD
Availability: InStock

Be the first to review this product

US$421.20 US$351.00

In stock

SKU

40-10-008PC

Mini rear subframe for all dry suspension models from 1991 onwards, finished in black powder coating for extra protection from rust and corrosion.

Frequently Bought Together

Rear Subframe - 91 on (inc hangers) - Powder Coated
US$424.32 US$353.60
Poly Rear Subframe Bush Kit - Red 76-01
Special Price US$21.61 US$18.01 Regular Price US$26.52
Rear Subframe Mounting Bush kit - Mini 1976 on
Special Price US$61.66 US$51.38 Regular Price US$71.58
Mini Rear subframe radius arm bracket fitting kit
Special Price US$13.24 US$11.03 Regular Price US$15.17
Rear Subframe Mounting Bush kit - Genuine
Special Price US$85.67 US$71.39 Regular Price US$89.45

Details

Replacement rear subframe for all dry suspension Minis from 1991 onwards, which have the exhaust hangers welded to the frame.

This is an aftermarket Mini part manufactured to original equipment specifications, perfect if your Mini needs a new rear subfame on a budget. Finished in a black powder coating for extra corrosion protection and an extended service life.

For the genuine alternative please see part number KHB10024.

For ease of fitment we recommend you use the Heritage HMP841014 subframe fitting kit, as this contains all the bolts and bushes needed for the job.

Buy top quality Classic Mini subframes and suspension parts from Mini Sport, the premier online mini store!

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	All (Hydrolastic) wet suspension models		21A2160
1	'59-'91 dry suspension models - no exhaust hangers		FAM6292
1	'92-'97 models with exhaust hangers		KHB10023
1	Sportspack '97-'01		KHB100590
1	Automatic Subframe assembly - '92-'97		KHB10024
1	KHB10024 including trunnions & bushes (as pic)		KHB10026
	Genuine - Mk4 built up and ready to fit		HMP241002
1	'59-'91 dry suspension models - no exhaust hangers		40-10-007
1	'59-'91 models - no exhaust hangers powder coated		40-10-007PC
1	'91-'97 dry suspension models - with exhaust hangers		40-10-008
1	'91-'97 models - exhaust hangers powder coated		40-10-008PC
1	All (Hydrolastic) wet suspension models)		40-10-006
2	RH radius arm/subframe bracket, each		21A195
3	LH radius arm/subframe bracket, each		21A197
7	Rear subframe fitting kit (as pic)		HMP841014
8	Rear trunnion pin, each		21A1440
9	Rear mounting bush, late, each		21A2560
9	Poly bush kit - late (red or black)		SPDSP664A
9	Nylon bush kit - late		MSLMS0531
10	Rear mounting bush - early, each		2A5818
10	Poly bush kit - early (red or black)		SPDSP662A
10	Nylon bush kit - early		MSLMS0532
11	Spring washer	each	GFK1125
12	Long trunnion bolt	each	SH605181
12	Short trunnion bolt	each	GFK5185
13	Nyloc nut	each	GFK3323
14	Washer	each	PWZ207
15	Washer - 5/16"	each	GFK1114
16	Nut - 5/16" UNF	each	GFK3322
17	Set Screw - trunnion 5/16" UNF	each	BH605201
18	Trunnion (rectangle), each		21A2558
19	Trunnion (step), each		2A5819
