Internal Door Hinge Set Mini Mk3on - Genuine

Name: Internal Door Hinge Set Mini Mk3on - Genuine
SKU: HMP441030
Price: 232.836001 USD
Availability: InStock

Be the first to review this product

Special Price US$232.84 US$194.03 Regular Price US$237.62

In stock

SKU

HMP441030

Set of 4 internal type door hinges for Mini models 1969 on, for both doors with wind up type windows. Genuine Product

HMP44103 Set of 4 door hinges for Mini models 1969 on, for both doors with wind up type windows.

Frequently Bought Together

Internal Door Hinge Set Mini Mk3on - Genuine
Special Price US$232.84 US$194.03 Regular Price US$237.62
Mini Door Hinge to Body Mounting Kit - Stainless
Special Price US$27.16 US$22.63 Regular Price US$29.77
Stainless Steel Door Shims
Special Price US$11.38 US$9.48 Regular Price US$12.46
Side Panel Rear Bottom Corner Repair Panel - RH 1970-2001
Special Price US$30.65 US$25.54 Regular Price US$33.74
Screw - 1/4"UNF x 5/8" Countersunk
Special Price US$1.37 US$1.14 Regular Price US$1.64

Details

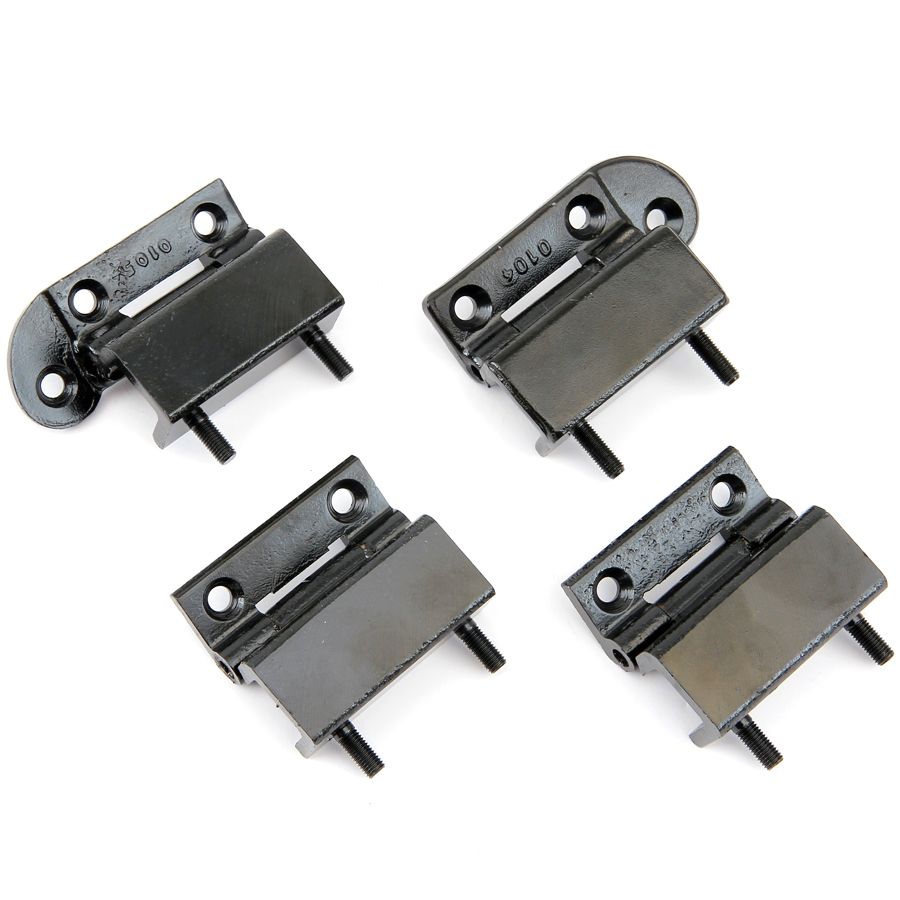

Set of 4 internal type door hinges for Mini Mk3 on (1969-2001) with the wind up type windows. Both doors.

These are Genuine British Motor Heritage Products.

Set includes

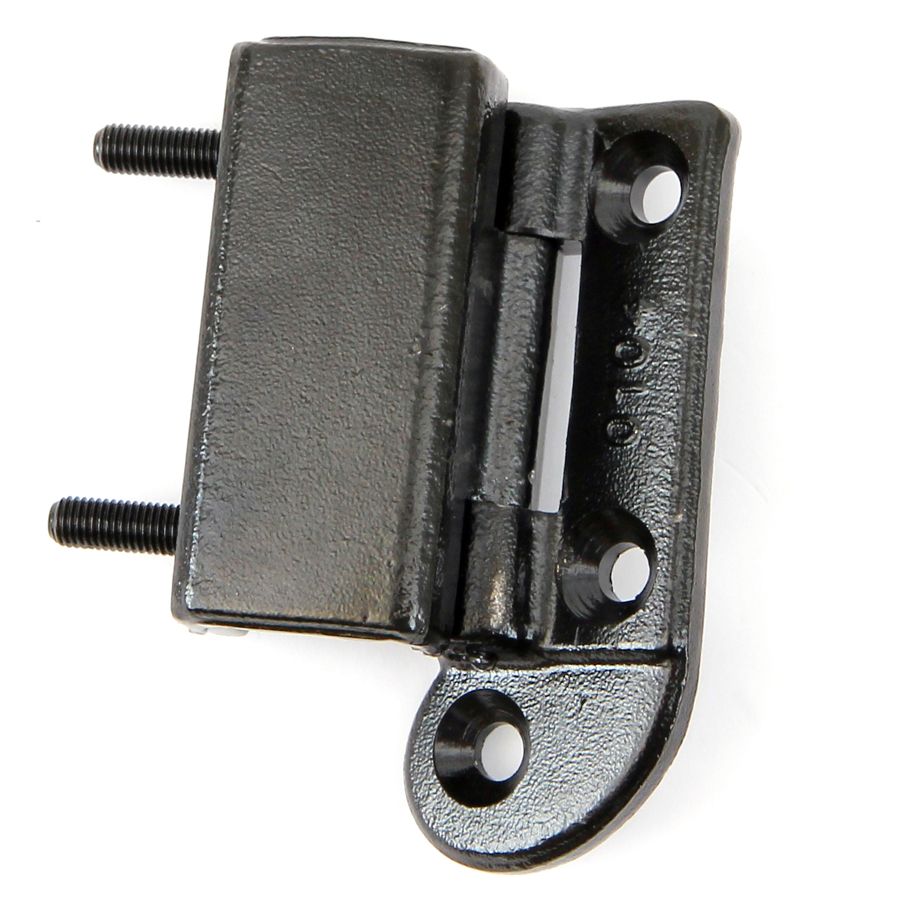

1 x CZH202 RH top hinge

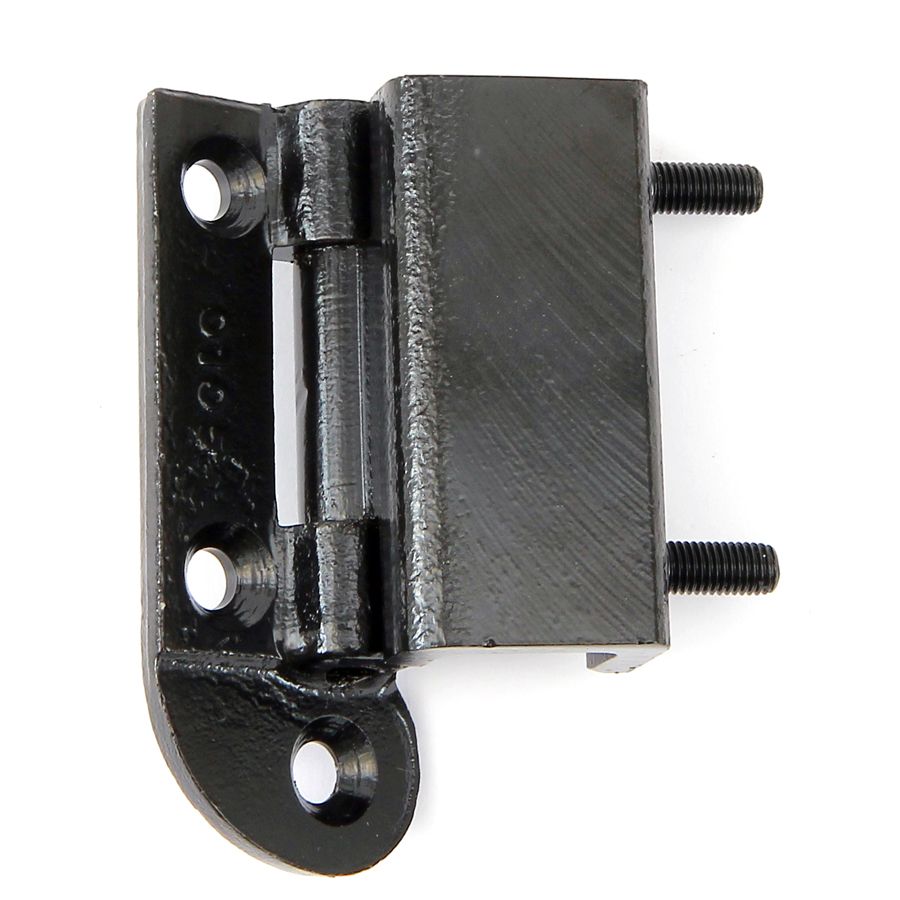

1 x CZH203 LH top hinge

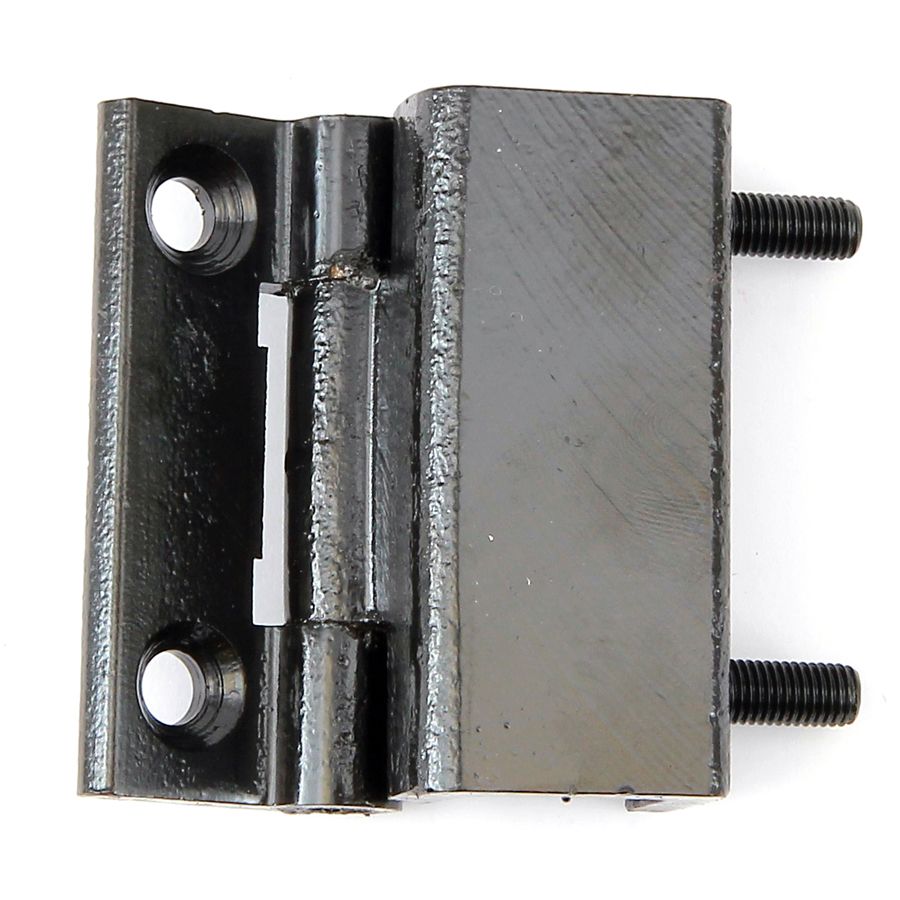

2 x CZH212 bottom hinge

Buy top quality Classic Mini door hinges, spares and parts from Mini Sport, the worlds premier online Mini store!

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	Door Hinge - Upper	Right Side	CZH202
1	Door Hinge - Upper - Genuine	Right Side	CZH202OE
	Door Hinge Set 4 - Genuine	Right Side	CZH202KIT
	Door Hinge - Upper	Left Side	CZH203
	Door Hinge - Upper - Genuine	Left Side	CZH203OE
2	Door Hinge Lower - Genuine	Lower	CZH212
	Door Hinge Kit '70 on (set 4)	Car Set	HMP441030
	Door Hinge Set 4 - Alloy Quick Release	Car Set	C-MAD001
3	Door Hinge Support Bracket		ALA6381
4	Screw - Door Hinge to Door	each	SF604061
5	Nut - Door Hinge to Body	each	GHF221
	MK1/2 External Door Hinge - Upper	Left Side	14A6819
	MK1/2 External Door Hinge - Lower	Left Side	14A6821
6	MK1/2 External Door Hinge (set 4)	KIT	14A6818K
	MK1/2 Door Hinge Gasket (Long)	NLA	24A2173
	MK1/2 Door Hinge Gasket (Long)	NLA	MCR47/L
	MK1/2 Door Hinge Gasket (Short)	NLA	MCR47/S
	Bush - Door Hinge Pin Mk1/2		37H3043
	Pin - Door Hinge Mk1/2		37H3044
	Bracket - Door Check Arm	NLA	CZH3121
7	Door Check Arm Assembly	NCA	ADA5671
7	Door Check Arm Assembly		ADA5671OE
8	Clevis Pin - Door Check Arm		CLZ412
9	Seal - Door Check Arm - Genuine	Right Side	CZH4052
	Seal - Door Check Arm (Right Side)	NLA	CZH4052OE
	Seal - Door Check Arm - Genuine	Left Side	CZH4053
	Seal - Door Check Arm (Left Side)	NLA	CZH4053OE

Find all related parts with our Easy Parts Finder

No.

Description

Heritage

Genuine

Magnum

Classic

Re-production

OE Spec

1	Door Bottom Inner Mk3on LH		40-12-13-1
1	Door Bottom Inner Mk3on RH		40-12-13-2
	Door Buffer Mk1/2			14A6833
	Door Check Arm Assembly Mk3 on	ADA5671OE	ADA5671
	Door Check Strap - Black			AKE906
	Door Check Strap - Blue			14E4288
	Door Check Strap - Green			14E4291
	Door Check Strap - Grey			14E8403
	Door Check Strap - Red			NCMDC3005M
	Door Chrome Moulding Clip Lower			13H525
	Door Chrome Moulding Rivetts Upper			13H743
2	Door Frame Bottom Mk1/2 LH		40-10-13-1	MCR11.15.00.27
2	Door Frame Bottom Mk1/2 RH		40-10-13-2	MCR11.15.00.28
2	Mk3 Door Bottom Inner Frame LH		40-12-13-3
2	Mk3 Door Bottom Inner Frame RH		40-12-13-4
	Door Hinge Gasket Mk1/2 Long			MCR11.15.12.05
	Door hinge Gasket Rear Van			MCR21.11.03.05
	Door Hinge Kit (4 Hinges) Mk3on	HMP441030	CZH202KIT
	Door Hinge Lower Mk3on		CZH212
	Door Hinge Upper Mk3on LH	CZH203OE	CZH203
	Door Hinge Upper Mk3on RH	CZH202OE	CZH202
3	Door MK1/2 59-69 LH	14A8307
3	Door MK1/2 59-69 RH	14A8306
3	Door MK3/4/5 Complete LH	BDA360110
3	Door MK3/4/5 Complete RH	BDA360100
3	Door MK3/4/5 less hinges LH	BMP327
3	Door MK3/4/5 less hinges RH	BMP326
	Door Pocket Moulding Chrome Mk1/2			24A1169
	Door Post Repair Section LH			MCR11.14.00.67
	Door Post Repair Section RH			MCR11.14.00.68
4	Door Skin Lower MK3 LH		40-12-12-1
4	Door Skin Lower MK3 RH		40-12-12-2
5	Door Skin MK1/2 LH	14A5499	40-10-11-1
5	Door Skin MK1/2 RH	14A5498	40-10-11-2
5	Door Skin Aluminium MK1/2 LH		40-10-11-3
5	Door Skin Aluminium MK1/2 RH		40-10-11-4
5	Door Skin MK3/4/5 LH	CZH3301	40-12-11-1
5	Door Skin MK3/4/5 RH	CZH3300	40-12-11-2
5	Door Skin Aluminium MK3 LH		40-12-11-3
5	Door Skin Aluminium MK3 RH		40-12-11-4
5	Door Skin MK3 - No Top Support Rail - Grasstrack LH		40-12-11-5
5	Door Skin MK3 - No Top Support Rail - Grasstrack RH		40-12-11-6
	Window Regulator MK3 LH		CZH647
	Window Regulator MK3 RH		CZH646
	Window Regulator Channel MK3 Front LH/Rear RH		40-12-11-7	ALA5747
	Window Regulator Channel MK3 Rear LH/Front RH		40-12-11-8	ALA574
	Window Regulator Channel MK3 Door Pair		40-12-11-0	ALA5745
6	Door Surround MK3 LH	CZH123
6	Door Surround MK3 RH	CZH122
7	Side Panel Complete LH	CZH431
7	Side Panel Complete RH	CZH430
8	A Post with Door Step Repair LH	HMP441013
8	A Post with Door Step Repair RH	HMP441012
8	A Post & Part Door Step Repair LH		40-12-40-5
8	A Post & Part Door Step Repair RH		40-12-40-6
9	Side Panel Rear 1/4 Mk1/2 LH			MCR11.14.00.17
9	Side Panel Rear 1/4 Mk1/2 RH			MCR11.14.00.18
9	Side Panel Rear 1/4 Mk2/3on LH	HMP441015	40-12-51-1	MCR13.14.00.17
9	Side Panel Rear 1/4 Mk2/3on RH	HMP441014	40-12-51-2
10	Side Panel Rear Wheelarch Repair LH MK1		40-10-59-1
10	Side Panel Rear Wheelarch Repair RH MK1		40-10-59-2
10	Side Panel Rear Wheelarch Repair LH 1970 on		40-12-59-1
10	Side Panel Rear Wheelarch Repair RH 1970 on		40-12-59-2
11	Side Panel Rear Bottom Corner Saloon LH		40-12-60-1
11	Side Panel Rear Bottom Corner Saloon RH		40-12-60-2
12	Side Panel Bottom Repair Arch to Door MK3 LH		40-12-04-1
12	Side Panel Bottom Repair Arch to Door MK3 RH		40-12-04-2
13	Side Panel Waist Rail MK3 LH	CZH427
13	Side Panel Waist Rail MK3 RH	CZH426
14	Trim Side seam Deluxe Chrome		08-01-617
15	Trim Side seam Standard Chrome		GZF107
16	Door Step Plain		40-10-04-0
17	Door Step Shaped Mk3 LH		40-10-04-1
17	Door Step Shaped Mk3 RH		40-10-04-2
	Door Step/Side Club/Trav LH		40-13-05-1
	Door Step/Side Club/Trav RH
18	Door Step/Side Mk1/2 Saloon LH		40-10-05-1
18	Door Step/Side Mk1/2 Saloon RH		40-10-05-2
18	Door Step/Side Mk3 Saloon LH		40-12-05-1
18	Door Step/Side Mk3 Saloon RH		40-12-05-2
19	Roof Drip Rail Mk1/2			MCR11.14.02.05
20	Roof Panel	14A5503
20	Roof Panel - Late	AKA360010
