SKU

GPS133

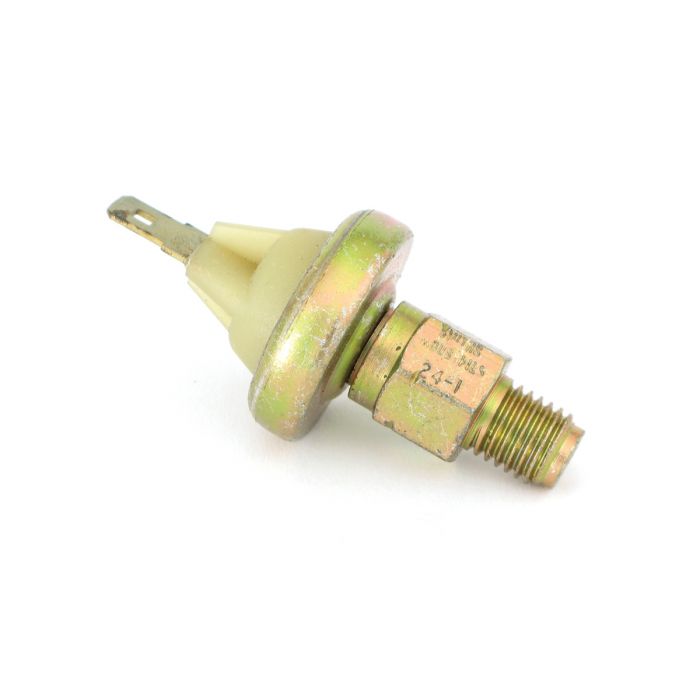

Oil Pressure Switch Mini

Name: Oil Pressure Switch Mini
SKU: GPS133
Price: 11.076001 USD
Availability: InStock

Be the first to review this product

US$11.08 US$9.23

In stock

SKU

GPS133

Standard Oil pressure warning switch, triggers the low oil pressure warning light at 7psi

All minis 1959-1996.

Frequently Bought Together

Oil Pressure Switch Mini
US$11.00 US$9.17
Chrome Roof Finisher Gutter Trim
US$35.03 US$29.19
Contact Set - for Lucas 45D Distributor with red points 1974-80
US$8.33 US$6.94
Wiring Loom - Side Repeater
US$21.60 US$18.00
59D4 Lucas Type Distributor with Points Ignition
US$75.66 US$63.05

Details

Standard replacement oil pressure switch for all minis 1959-1996.

7psi standard oil pressure switch - helps protect the engine by activating the low oil pressure warning light, an early warning system for any oil pressure problems, before it too late!

Perfect for all Minis A series engines from 1959 to 1996.

THIEWS/1C is the 20psi oil pressure switch

GPS135 is the Mini MPi oil pressure switch

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	Oil Filter Head - spin on type		12A2032
2	Oil Filter - Mk1 - paper type		GFE103
	Oil Filter - Automatic to '96		GFE104T
2	Oil Filter - all models including SPi		GFE443
2	Oil Filter - MPi/MPi auto only		CDU1268
2	MPi oil cooler filter		2008
3	Flange Bolt - filter head to crankcase		TAM1186
	Stud - Oil Filter Head		CHS2513
	Nut - Filter Head		GFK3213
	Washer - Filter Head		GFK1115
	Spring Washer		MSLMS0047
4	Gasket - Oil Filter head to cylinder block - early		88G402
4	Gasket - Oil Filter head to cylinder block - late		12A2035
5	Pipe - oil filter to crankcase aeroquip	pre '90	TAM2106AERO
6	Screw - banjo union		2A715
7	Copper Washer		22A134
8	Connector-oil pipe		TAM2119
8	Connector-oil pipe		TCZ106
9	Pipe - oil filter to crankcase	'90 on	LQP10033AERO
9	Pipe - oil filter to crankcase		CAM1018-6
10	Tube Nut - pipe		LYH10014
11	Rubber Seal - pipe		LZB10017
12	Pipe - oil filter - gearbox to crankcase - Automatic		LQP10038
13	Adaptor-pipe to gearbox	NLA	DAM7601
14	'O' Ring - Automatic		22A1563
15	Oil Pump - 2 bolt 1275cc A+	Slot Drive	AHU1048
15	Oil Pump - high capacity	Slot Drive	CAM86614
15	Oil Pump - 850cc, 998cc, 1098cc	Peg Drive	12G793
15	Oil Pump - 1275cc	Spider Drive	CHM140
15	Oil Pump - 3 bolt 998cc A+	Slot Drive	GLP139
16	Gasket-oil pump		12G730B
17	Flange Bolt - pump to crankcase 1/4" UNF x 1 1/2"		TAM1174
17	Bolt - pump to crankcase 1/4" UNF x 1 3/4"		BH604141
	Spring Washer		GFK1124
18	Oil Pump - Automatic	NLA	GLP107
19	Screw - allen - pump to crankcase	NLA	12A1254
20	Pipe-oil outlet - Automatic		22A1185
21	'O' Ring - Automatic		22A1562
22	Block - outlet pipe - Automatic	NLA	22A1187
23	'O' Ring-internal - Automatic		22A1560
24	Valve - oil release		12H865
25	Spring - oil release valve		6K853
	Oil Pressure release valve	KIT	12H865KIT
26	Copper Washer - release valve		6K431B
27	Release valve cap nut		12A1851
28	Oil Dip stick	pre '97	LQM100380
28	Oil Dip stick	'97 on	LQM100630
	Oil Dip stick CHROME - Blue, Red or Polished top		MSLMS0539
	Oil Dip stick - Automatic		DAM7599
	Oil Pressure Switch		GPS133
29	Oil Pressure Switch	MPi	GPS135
