SKU

GFE1143

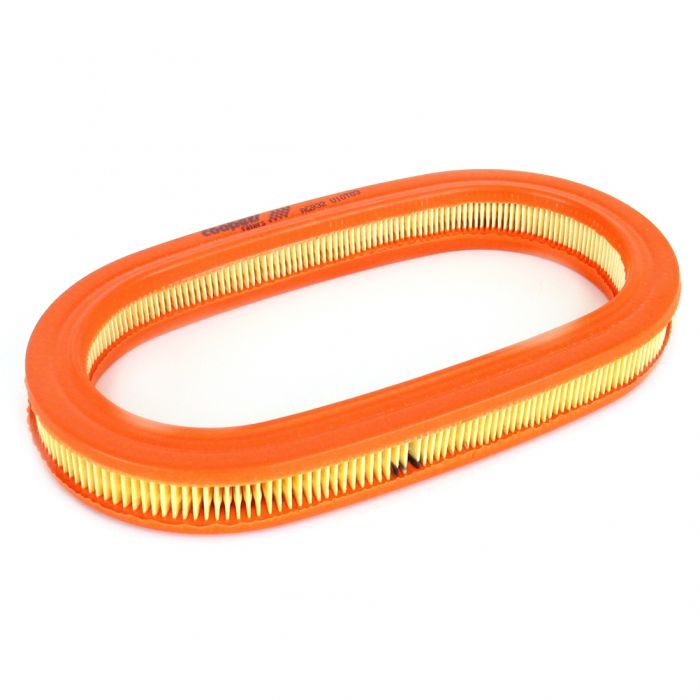

Standard Air Filter Element - Injection 1992-01

Name: Standard Air Filter Element - Injection 1992-01
SKU: GFE1143
Price: 11.700001 USD
Availability: InStock

US$11.70 US$9.75

Sorry, out of stock Please Order Back in stock soon!

SKU

GFE1143

Standard air filter element - injection 1992-01

Frequently Bought Together

Details

Replacement standard air filter element to suit all Injection Minis 1992-2001.

No.

Description

Notes

Part No.

1	Throttle body - manual/ automatic		MLB10028
2	Injector assembly		MMJ10004
	Gasket - hydraulic body to body - throttle body		JZX3064
3	Kit - potentiometer		MMJ10003
4	Packer injector to	manifold	LZV1101
5	Fuel feed and return pipes		WJW10030
6	Clamp - fuel pipes		WJU10137
7	Screw - clamp		FS106165
8	Bracket - abutment		MHU10059
9	Bracket - rail		WJU10136
10	Nut - flanged-throttle body to manifold		FN108041
11	Screw - abutment bracket to manifold		FS106101
12	Seal - air box to throttle body		PHN10011
13	Heater PTC - inlet manifold		MED10003
14	Clip-retaining - P.T.C Heater		CR110551
15	Tie-cable - stepper motor loom		AAU6365
	Adaptor - potentiometer		JZX2454
16	Manifold-inlet	NLA	LKB10477
17	Manifold-exhaust		LKC10090
18	Stud - exhaust manifold		TD108051
	Gasket - Manifold - injection		LKJ100580EVA
19	Stud - manifold to packer		TE108071
20	Nut - stud		GFK3436
21	Washer - plain		GFK1114
22	Nut and washer - manifold stud		LYH10008
23	Ferrule - inlet manifol to head		12G297
24	Hot box-manifold		LKK10025
25	Screw-hot box to manifold		FS106101
26	Air Cleaner Assembly		PHB10081
27	Element		GFE1143
28	Duct-elbow		PHD10129
29	Hose-sensor to A.T.C.		PHP10027
30	Sensor - thermal	NLA	ADU6109
31	Seal - sensor		UAM1828
32	Sensor-air temperature		NNK10001
33	Duct - hot air	NLA	PHD10210
	Screw - heatshield to duct		PKE10002
34	Pipe - vacuum - inlet manifold		PHP10043
35	Screw - air cleaner to throttle body		PYP10018
36	Valve - assembly depression control		LLN10009
37	Seal - air cleaner to throttle		PHN10011
	Tie - vacuum pipe to harness		AAU6365
