SKU

GEX7088

Exhaust to Gearbox Mounting Bracket - Large

Name: Exhaust to Gearbox Mounting Bracket - Large
SKU: GEX7088
Price: 7.620001 USD
Availability: InStock

Special Price US$7.67 US$6.39 Regular Price US$9.96

Sorry, out of stock Please Order Back in stock soon!

SKU

GEX7088

Exhaust to Gearbox Mounting Bracket

Frequently Bought Together

Exhaust to Gearbox Mounting Bracket - Large
Special Price US$7.67 US$6.39 Regular Price US$9.96
Holts Firegum Exhaust Paste 150g
Special Price US$6.00 US$5.00 Regular Price US$6.59
Genuine Moulton Rubber Cone Spring for Mini Suspension
US$73.86 US$61.55

Details

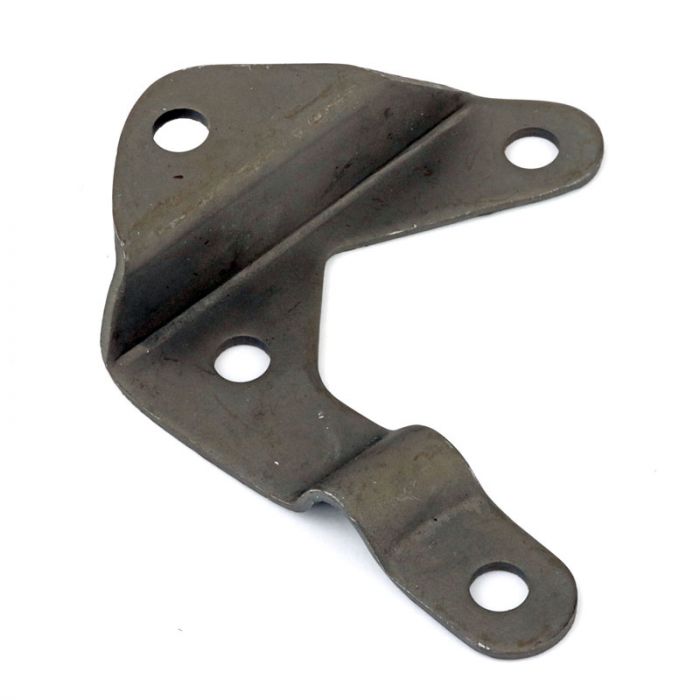

This Exhaust to Gearbox mounting Bracket bolts on to the Rod Change Gearbox and attaches onto the Exhaust Downpipe Clip.

No.

Description

Notes

Part No.

	850cc/998cc/1098cc/1275cc System	single silencer	AN292E
1a	Standard Rover Carb Exhaust Downpipe 1990-1994	HS4/HIF38	GEX12052
1b	Cooper 1.3 Carb with CAT 90-91 (Twin Pipe)	NLA	GEX12017
2	998cc/1098cc/1275cc System	twin silencer	AN374J
9	Hanger - twisted support strap	rear	GEX7778
10	Square rubber exhaust mounting		GEX7081
11	Bobbin type rubber exhaust mounting		GEX7251
12	Clamp manifold/downpipe clamp		GEX7046
	Clamp manifold/downpipe clamp	- 1.3 '92-'94	GEX7801
13	Front Pipe to gearbox support bracket		GEX7053
	Hanger - front of the rear subframe		GEX7082
14	Exhaust mounting bracket - rear		GEX7084
	Gearbox - exhaust support (mounting) bracket - early type		GEX7088
16	Rubber exhaust hanger		GEX7661
17	Nut - 5/16" UNF		GHF201
	Flat Washer - 5/16"		GFK1114
18	Spring Washer - 5/16"		GFK1125
19	Set Screw 5/16" UNF x 1"		GFK5185
	45mm Exhaust U clamp	each	LEX021-50
	48mm Exhaust U clamp	each	LEX022-50
	51mm Exhaust U clamp	each	LEX023-50
	54mm Exhaust U clamp	each	LEX024-50
	Manifold - standard gasket		AJM601
	Manifold - large port gasket		C-AHT381
	Manifold - injection exhaust gasket		LKJ100580EVA
	Exhaust Sealing Paste - Bosal	NLA

No.

Description

Notes

Part No.

	850cc/998cc/1098cc/1275cc System	single silencer	AN292E
	Standard Rover Carb Exhaust Downpipe 1990-1994	HS4/HIF38	GEX12052
	Cooper 1.3 Carb with CAT 90-91" (Twin Pipe)>	NLA	GEX12017
2	998cc/1098cc/1275cc System	twin silencer	AN374J
9	Hanger - twisted support strap	rear	GEX7778
10	Square rubber exhaust mounting		GEX7081
11	Bobbin type rubber exhaust mounting		GEX7251
12	Clamp manifold/downpipe clamp		GEX7046
	Clamp manifold/downpipe clamp	- 1.3 '92-'94	GEX7801
13	Front Pipe to gearbox support bracket		GEX7053
	Hanger - front of the rear subframe		GEX7082
14	Exhaust mounting bracket - rear		GEX7084
	Gearbox - exhaust support (mounting) bracket - early type		GEX7088
16	Rubber exhaust hanger		GEX7661
17	Nut - 5/16" UNF		GHF201
	Flat Washer - 5/16"		GFK1114
18	Spring Washer - 5/16"		GFK1125
19	Set Screw 5/16" UNF x 1"		GFK5185
	45mm Exhaust U clamp	each	LEX021-50
	48mm Exhaust U clamp	each	LEX022-50
	51mm Exhaust U clamp	each	LEX023-50
	54mm Exhaust U clamp	each	LEX024-50
	Manifold - standard gasket		AJM601
	Manifold - large port gasket		C-AHT381
	Manifold - injection exhaust gasket		LKJ100580EVA
	Exhaust Sealing Paste - Bosal

No.

Description

Notes

Part No.

1	Housing - remote	DAM3670
2	Bush - lower - housing	42H1214
3	Pin-long - change speed control	DAM2670
4	Pin - short - change speed control	22G2277
5	Cover - bottom	DAM8621
6	Bracket - mounting	22G2026
7	Bolt-bracket to housing	BT606281
8	Nut - bracket to housing	LNZ106
9	Mounting (rubber) gearbox extension	22G2205
10	Washer - spring	GHF332
11	Nut - mounting	GHF201
12	Lever - gear change	UKE100790
15	Retainer - spring	22G1434
16	Eye - extension rod	22G2792
17	Rod - extension - 1275cc '92on	UKN10023
18	Pin - spring-slotted	RPS1416
19	Coupling-extension rod	42H1116
20	Rod - support - eye	42H1199
21	Rod - steady - 1275cc	UKN10032
22	Bolt - rod to differential cover	BT605161
23	Nut - bolt	NV605041
24	Washer	GHF304
25	Nut - steady rod	GHF275
26	Washer - steady rod	WA112081
27	Bush - Steady Shaft	13H7286
28	Retainer - gaiter	FJN10003
29	Bracket - exhaust system	GEX7088
29	Bracket - exhaust system - late type	GEX7526
30	Gaiter - change speed lever inner	CZH4278
31	Insulation - lever aperture
32	Screw - retainer-gaiter	GHF426
33	Reverse Light Switch	GAE191A
34	Locknut - Reverse Light Switch	22A1613
