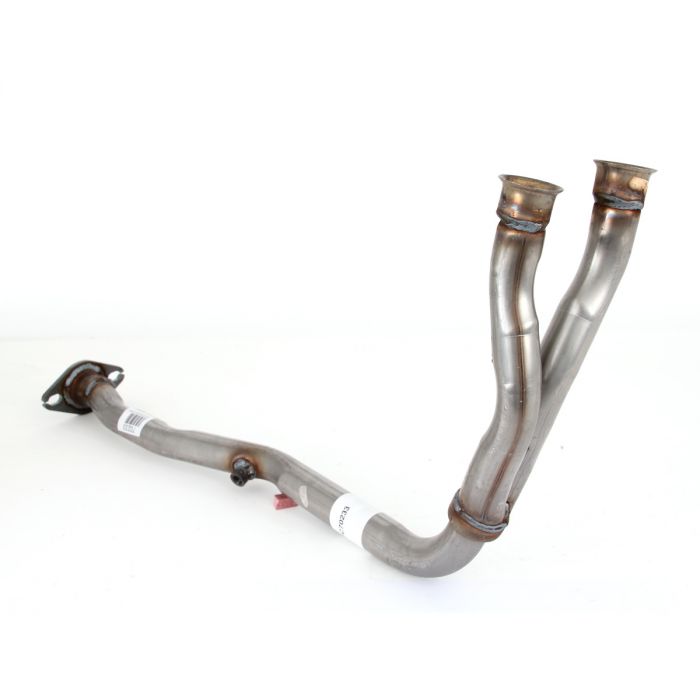

Standard Rover Carb Exhaust Downpipe 1990-1994 HIF44

Name: Standard Rover Carb Exhaust Downpipe 1990-1994 HIF44
SKU: GEX12017
Price: 97.104001 USD
Availability: InStock

US$97.10 US$80.92

SKU

GEX12017

Standard rover carb exhaust downpipe 1990-1994 hif44

Details

Standard replacement downpipe as fitted to early 90's Minis fitted with a HIF44 (1.75'') carb.

Fits from the cast manifold with a flange and fits to the front of the catalytic convertor.

No.

Description

Notes

Part No.

	850cc/998cc/1098cc/1275cc System	single silencer	AN292E
1a	Standard Rover Carb Exhaust Downpipe 1990-1994	HS4/HIF38	GEX12052
1b	Cooper 1.3 Carb with CAT 90-91 (Twin Pipe)	NLA	GEX12017
2	998cc/1098cc/1275cc System	twin silencer	AN374J
9	Hanger - twisted support strap	rear	GEX7778
10	Square rubber exhaust mounting		GEX7081
11	Bobbin type rubber exhaust mounting		GEX7251
12	Clamp manifold/downpipe clamp		GEX7046
	Clamp manifold/downpipe clamp	- 1.3 '92-'94	GEX7801
13	Front Pipe to gearbox support bracket		GEX7053
	Hanger - front of the rear subframe		GEX7082
14	Exhaust mounting bracket - rear		GEX7084
	Gearbox - exhaust support (mounting) bracket - early type		GEX7088
16	Rubber exhaust hanger		GEX7661
17	Nut - 5/16" UNF		GHF201
	Flat Washer - 5/16"		GFK1114
18	Spring Washer - 5/16"		GFK1125
19	Set Screw 5/16" UNF x 1"		GFK5185
	45mm Exhaust U clamp	each	LEX021-50
	48mm Exhaust U clamp	each	LEX022-50
	51mm Exhaust U clamp	each	LEX023-50
	54mm Exhaust U clamp	each	LEX024-50
	Manifold - standard gasket		AJM601
	Manifold - large port gasket		C-AHT381
	Manifold - injection exhaust gasket		LKJ100580EVA
	Exhaust Sealing Paste - Bosal	NLA

No.

Description

Notes

Part No.

	850cc/998cc/1098cc/1275cc System	single silencer	AN292E
	Standard Rover Carb Exhaust Downpipe 1990-1994	HS4/HIF38	GEX12052
	Cooper 1.3 Carb with CAT 90-91" (Twin Pipe)>	NLA	GEX12017
2	998cc/1098cc/1275cc System	twin silencer	AN374J
9	Hanger - twisted support strap	rear	GEX7778
10	Square rubber exhaust mounting		GEX7081
11	Bobbin type rubber exhaust mounting		GEX7251
12	Clamp manifold/downpipe clamp		GEX7046
	Clamp manifold/downpipe clamp	- 1.3 '92-'94	GEX7801
13	Front Pipe to gearbox support bracket		GEX7053
	Hanger - front of the rear subframe		GEX7082
14	Exhaust mounting bracket - rear		GEX7084
	Gearbox - exhaust support (mounting) bracket - early type		GEX7088
16	Rubber exhaust hanger		GEX7661
17	Nut - 5/16" UNF		GHF201
	Flat Washer - 5/16"		GFK1114
18	Spring Washer - 5/16"		GFK1125
19	Set Screw 5/16" UNF x 1"		GFK5185
	45mm Exhaust U clamp	each	LEX021-50
	48mm Exhaust U clamp	each	LEX022-50
	51mm Exhaust U clamp	each	LEX023-50
	54mm Exhaust U clamp	each	LEX024-50
	Manifold - standard gasket		AJM601
	Manifold - large port gasket		C-AHT381
	Manifold - injection exhaust gasket		LKJ100580EVA
	Exhaust Sealing Paste - Bosal
