SKU

C5192A

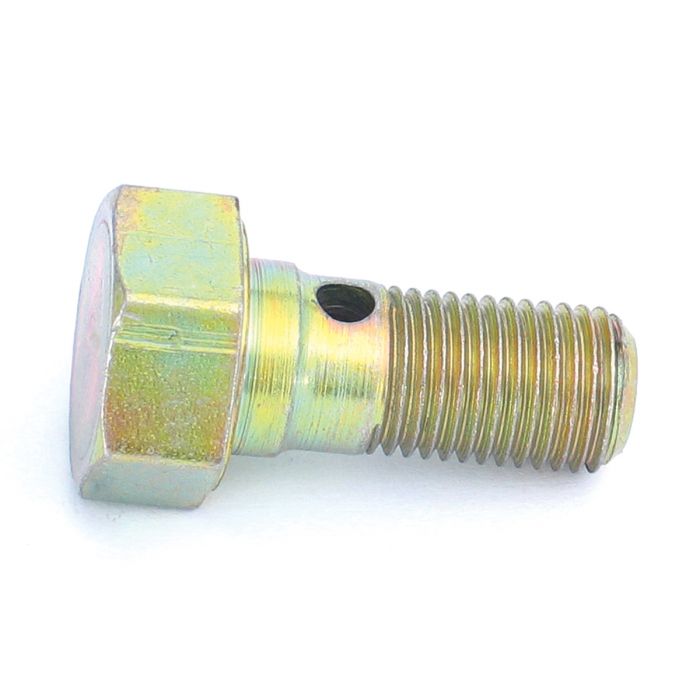

Clutch Banjo Bolt - Verto 1982-2001

Name: Clutch Banjo Bolt - Verto 1982-2001
SKU: C5192A
Price: 8.808001 USD
Availability: InStock

Be the first to review this product

US$8.81 US$7.34

In stock

SKU

C5192A

Clutch banjo bolt - verto 1982-2001

Frequently Bought Together

Clutch Banjo Bolt - Verto 1982-2001
US$8.75 US$7.29
Copper Washer - 7/16" Brake or Clutch
US$1.14 US$0.95
3/8" Copper Washer
US$0.47 US$0.39
Clutch Slave Cylinder - pre verto type
US$25.12 US$20.93
Clutch Slave Cylinder - Verto clutch 1982-2001
US$47.21 US$39.34

Details

Replacement verto clutch banjo bolt, will fit all minis with verto clutch, 1982-2001.

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	220mm (8.5'') m/cylinder to PR valve 10mm	- 2 x M (metric)	BP8M
1	229mm (9'') pre GMC227 to PR valve 10mm	- 2 x M (metric)	BP9M
3	356mm (14") GMC227 to PR valve 10mm	- 2 x M (metric)	BP14M
3	559mm (22") master cylinder to PR valve 10mm	Cooper SE, Cooper 1300cc and SPi- 2 x M (metric)	BP22M
3	660mm (26") master cylinder to PR valve	- 2 x M (metric)	BP26M
4	195mm (7.5'') PR valve to tube connector	- 2 x M (metric)	BP7M
6	Connector tube (metric)		BMK2466A
7	260mm (10'') tube connector to RH front hose	- 2 x M (1x metric)	BP10M
8	1093mm (43") LH to RH front hoses	- 2 x M	BP43
8	1118mm (44") RH front hose to LH front hose	- 2 x M	BP44
9	2440mm (96") PR valve to rear 3 way	- 2 x M (1x metric)	BP96M
9	2590mm (102") PR valve to rear 3 way	- 2 x M (1x metric)	BP102M
10	3 way connector - rear subframe, each		3H2424
11	Set Screw - 3 way to rear subframe	- 1/4" UNF x 1 1/4"	SH604091
12	Spring Washer	- 1/4"	GFK1124
13	Nut	- 1/4" UNF	GFK3211
	610mm (24") rear regulating valve to LH hose	- 1 x M, 1 x F	BP24
14	640mm (25") 3 way LH rear Hose	- 1 x M, 1 x F	BP25
15	152mm (6'') 3 way to RH rear hose	- 1 x M, 1 x F152mm (6'') rear regulating valve to RH hose	BP6
16	Rubber Hose standard	front disc type	GBH249
16	Rubber Hose standard	front drum type	GBH170
17	Banjo connector - 2 way		21A654
18	Banjo Bolt connetor for stoplight switch (C16062)		7H7995
18	Banjo Bolt (no switch)		C5192A
18	Brake light switch	- pre '76	C16062
19	Copper Washer - front hose to banjo		233220A
20	Copper Washer - banjo to banjo bolt		3H550
21	Lock Nut - RH front hose to subframe		21A228
22	Lock Nut - LH front hose to subframe		2K8686
23	Lock Washer		WE600101
24	Regulator valve, all Mk1/2 to '69 inc Cooper S		21A1774
24	Regulator valve, Mk3 '69 to '78		21A2031
26	Standard Rubber Hose Rear each		GBH250
27	Lock Nut - rear hose to radius arm		NT606041
28	Lock Washer - rear hose to radius arm & rear subframe		GHF323
29	254mm (10'') rear hose to wheel cylinder	- 1 x M, 1 x F	BP10
30	Clip - brake pipe to front subframe		11K9181
	Clip - pipe to master cylinder,	LHD '88on	AAU7803A

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	Pedal Assembly - Clutch - RHD		NAM3116
	Pedal Assembly - Clutch - LHD		NAM3115
2	Bush		2A3034
3	Bracket - Brake and Clutch - RHD	'88-'96	SKU10043
	Bracket - Brake and Clutch - LHD	carb '88-'94	SKU10040
	Bracket - Brake and Clutch - LHD	injection '91-'96	SKU10042
3	Bracket - Brake and Clutch - RHD	MPi '96on	SKU101220
	Bracket - Brake and Clutch - LHD	MPi '96on	SKU101210
4	Set Screw - mounting bracket		SH605051
5	Spring Washer - mounting bracket		GHF332
6	Pedal Rubber Pad - early		GPR105A
6	Pedal Rubber Pad -		GPR107A
6	Pedal Rubber Pad -		SZU10001
7	Shaft - Clutch And Brake Pedal		2A5880
8	Nut - Nyloc - pedal shaft		GFK3322
9	Pin - Clevis		CLZ512
10	Spring - Pedal Return	'59-'88	2A5652
	Spring - Pedal Return - RHD	'89on	NAM8544
	Spring - Pedal Return - LHD	'89on	NAM8547
11	Master cylinder - early metal tank type		AAU4969
11	Master cylinder - late plastic tank type		STC100330
12	Filler Cap		513123A
14	Kit Repair - master cylinder (2 ring type)		GRK3004
	Kit Repair - master cylinder (1 ring and cup type)		GRK3007
15	Sealing Washer		31G279
16	Copper Pipe 27.94cm (11") Long - RHD		ACP455
16	Copper Pipe 86cm (34") Long - LHD		ACP456
17	Rubber clutch hose - pre verto		GVP1020
18	Rubber clutch hose - verto		GVP1009
19	Bolt - Banjo - Hose To Slave Cylinder		C5192A
20	Copper Washer - Banjo Bolt To Banjo		3H550
21	Copper Washer - Banjo To Slave Cylinder		233220A
23	Washer - Plain - Clutch Hose To Dash		WB116101
24	Nut - Lock - Tubenut		2K8686
25	Washer - Lock - Tube - Nut		WE600101
