SKU

88G409

Needle Roller Bearing - 1st/3rd Motion - 4 Synchro

Name: Needle Roller Bearing - 1st/3rd Motion - 4 Synchro
SKU: 88G409
Price: 3.744001 USD
Availability: InStock

Be the first to review this product

Special Price US$3.74 US$3.12 Regular Price US$4.99

In stock

SKU

88G409

1st/3rd motion shaft needle roller bearing for A series Mini gearboxes.

Needle Roller Bearing - 1st/3rd Motion - 4 Synchro

Frequently Bought Together

Needle Roller Bearing - 1st/3rd Motion - 4 Synchro
Special Price US$3.74 US$3.12 Regular Price US$4.99
Poly Rear Subframe Bush Kit - 59-76 - Black
Special Price US$15.84 US$13.20 Regular Price US$19.44
Idler Gear 4 Syncro Needle Roller Bearing
Special Price US$13.04 US$10.87 Regular Price US$16.01
3rd Motion shaft retaining peg
Special Price US$1.84 US$1.53 Regular Price US$2.45

Details

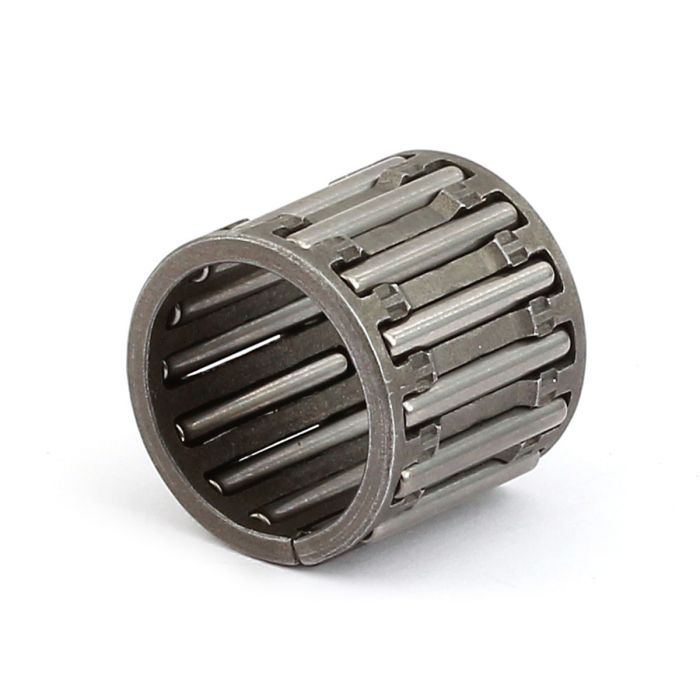

This replacement needle roller bearing fits between the 1st and 3rd motion shafts on A Series Mini gearboxes with a 14mm nose on the 3rd motion shaft.

A+ Mini gearboxes have an 18mm nose on the 3rd motion shaft and use roller bearing 13H9513.

If you are rebuilding a Mini gearbox we also have available a range of Mini gearbox reconditioning and bearing kits,

MS4016 - A+ gearbox bearing kit
MS4017 - A+ gearbox reconditioning kit
MS4018 - A series gearbox bearing kit
MS4019 - A series gearbox reconditioning kit

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	1st Motion Shaft / 4th Gear	A series	22G1093
1	1st Motion Shaft / 4th Gear	- A +	DAM4930
	Nut	- 1st Motion Shaft	2A3548
	Lock Tab	- 1st Motion Nut	DAM4000
2	14mm 1st motion needle roller bearing		88G409
3	Bearing - 1st motion shaft	Large	ADU7619
4	Circlip	- 1st Motion shaft bearing	22G850
5	Layshaft	- 3 synchro	22A1371
5	Layshaft	- 4 synchro - A series	22G931
5	Layshaft	- A+	DAM3187
5	Layshaft Competition	A series	C-22A1738
5	Layshaft Competition	- A +	C-22A1739
6	Laygear	- 3 synchro - Cooper S	22G1100
6	Laygear	- 4 synchro - A series	22G927
6	Laygear	- A+	DAM4931
2/7	18mm 1st motion/layshaft needle roller bearing		13H9513
7	16mm layshaft needle roller bearing		88G396
8	20mm layshaft needle roller bearing		CHM141
9	Thrust Washer	- Layshaft (.124"-.126") A+	DAM3181
9	Thrust Washer	- Layshaft (.130"-.132") A+	DAM3183
10	Thrust Washer	Laygear	22G860
11	Reverse idler	Rod change type	TUB10020
12	Bush	Reverse Idler Gear	TUJ10001
13	Shaft	Reverse Idler Gear	DAM8038
14	3rd Motion Shaft	- A series - 4 synchro	22G833
14	3rd Motion Shaft	- A +	DAM7484
15	Baulk Ring		22G2033
15	Baulk Ring	Genuine	22G2033GEN
16	Sycronizer	- 3rd & 4th gear	DAM7456
17	Ball	Syncronizer	BLS107
18	Spring	Syncronizer	DAM7391
19	3rd gear	A series	22G1095
19	3rd gear	- A +	DAM4933
20	2nd/3rd gear needle roller bearing		AAU1816
21	Thrust washer	- 3rd Gear	22G947
22	Peg - locking - 2nd/ 3rd gear	all	22G843
23	Spring - locking peg	- 3rd Motion Shaft	22G154
24	2nd gear	- A+	DAM4932
26	Thrust washer	- 2nd Gear	22G839
27	Sycronizer	- 1st & 2nd gear	DAM7455
28	1st gear	- A series and A+	22G1096
29	1st gear needle roller bearing		AAU1815
30	Journal	- 1st gear	22G837
31	Bearing - 65mm double	- 3rd motion shaft	AAU1365
32	Spring Ring	- 3rd Motion Bearing retainer	ADU4992
33	Shim	- 3rd Motion Bearing retainer (.003")	GUG705645GM
34	Locating Plate	- 3rd Motion Bearing retainer	2A3581
35	Bearing retainer	- 3rd Motion - rod change	22G2726
36	Lock Tab	- 3rd Motion Bearing retainer	DAM2377
37	Bolt	- 3rd Motion Bearing retainer	SH505071
39	Lock Tab Washer	Final Drive Pinion	DAM6140
40	Nut	- 3rd Motion Shaft - A+	DAM7485
