SKU

53K487

Inlet/Exhaust Manifold Stud

Name: Inlet/Exhaust Manifold Stud
SKU: 53K487
Price: 2.724001 USD
Availability: InStock

Be the first to review this product

Special Price US$2.72 US$2.27 Regular Price US$3.02

In stock

SKU

53K487

Inlet/exhaust manifold stud

Frequently Bought Together

Inlet/Exhaust Manifold Stud
Special Price US$2.75 US$2.29 Regular Price US$3.04
Exhaust Manifold Brass Nut - Short type
Special Price US$1.16 US$0.97 Regular Price US$1.27
Gasket - Diff End Cover
Special Price US$1.38 US$1.15 Regular Price US$1.66
Mini Clutch slave cylinder 'A' Series fitting kit
Special Price US$5.69 US$4.74 Regular Price US$6.23
Inlet/Exhaust Manifold Clamping Washer
Special Price US$0.79 US$0.66 Regular Price US$0.83

Details

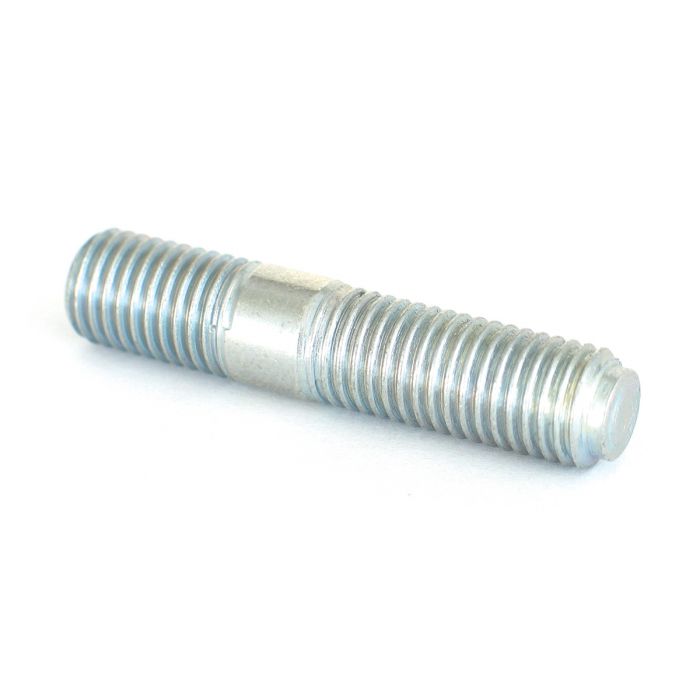

39mm inlet and exhaust manifold stud as fitted to all Minis except Injection Minis which used a 45mm stud.

Each.

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	850cc Cylinder Head	with bypass	HED850
1	998cc Cylinder Head		HED998
1	998cc Cylinder Head	with bypass	HED998.bp
1	998cc Cooper Cylinder Head	own unit required	HED998CPRRECON
1	1098cc Cylinder Head		HED1098
1	1098cc Cylinder Head	with bypass	HED1098.bp
1	1275cc Carburettor Cylinder Head	with bypass	HED1275.BP
1	1275cc Carburettor Cylinder Head		HED1275
1	1275cc SPI Cylinder Head		HED1275SPi
1	1275cc MPI Cylinder Head		HED1275MPi
1	Surcharge 850/998/1098 Cylinder Heads		SURHEAD5
1	Surcharge 1275cc Cylinder Head		SURHEAD6
2	Valve Guides - steel standard	- set of 8	VALVAG50911
2	Valve Guides - Bronze alloy performance	- set of 8	C-AJJ4037
38	Valve Stem Seal, all Mini's	- set of 4	ADU4905
3	Plug - cleaning hole		12H3503
44	Rivet - oil hole		CDU2601
5	Plug - water hole		12G2092
6	Plug - water dowel hole		AEA771
7	Heater Valve Blanking Plate		2A180
8	Heater valve gasket		GUG705923GM
8	Water Temperature guage take-off adaptor		C-MAD004
8	Heater Takeoff connector		12G2534
9	Spring Washer 1/4"		GFK1124
10	Nut - 1/4" UNF		GFK3211
11	Exhaust Valve Seat	1275cc	TAM2069
	Exhaust Valve Seat	998cc	VALVS6002
	Exhaust Valve Seat		VALVS6034
	Exhaust Valve Seat		VALVS6005
12	Stud Long - Thermostat Housing	each	CHS2524
12	Bolt Long - thermostat housing	each	DAM7760
12	Stud - Thermostat housing	each	CHS2515
13	Stud Long - Rocker Pedestal	each	51K885
14	Stud Short - Rocker Pedestal	each	TE505210
	Stud Long - cylinder head	each	CAM150
	Stud Short - cylinder head	each	CAM151
	Bolt - Cooper S cylinder head	each	AEG248
15	Stud - Manifold	each	53K487
	Stud - Manifold - Injection	each	LYR10028
16	Stud - Heater valve	each	53K402
17	Valve - 998 Cooper Inlet	31mm long groove	VALV34167
	Valve - 1275 Inlet	33mm single groove	VALV34274
	Valve - 998 Inlet	27mm single groove	VALV34858
	Valve - 998/1098 Exhaust	25mm single groove	VALV34859
	Valve - 1098 inlet	29mm long groove	VALV3568
	Valve - 1275 Inlet	35mm single groove	VALV90193
17	Valve - 1275 Exhaust	29mm single groove	VALV90194
17	Valve - 1275 Inlet	35mm triple groove	VALV90356
	Valve - 1275 Exhaust	29mm triple groove	VALV90357
	Valve - 1275 Inlet	33mm triple groove	FAIIV35403
18	850/1000/1100cc Valve Spring Set	extra strong singles	ADL451458
18	1275cc Valve Spring Set	extra strong singles	ADL451662
	1275cc Cooper S Valve Spring Set	standarddoubles	ADL451635
18	200lb Valve Spring Set	extra strong doubles	ADL451614
18	240lb Valve Spring Set	progressive extra strong doubles	ADLH/LIFT
19	Top Cap - valve spring - A+	each	AHU1897
21	Valve collets - single groove	each	88G459
21	Valve collets - triple groove	each	CAM6975
22	Rocker shaft, heavy duty		12A1950
22	Competition rocker shaft, nitrocarburised		12A1951T
23	Rocker Pedestal for locating screw		12G1927
24	Rocker Pedestal with oil hole		12G1926
	Rocker pedestal spacer - 2mm	each	C-AEG392
25	Rocker Arm - (sintered)		CAM289
25	Cooper S forged rockers	each	12G1221
25	Rocker bush	each	2A21
26	Screw - tappet adjusting		12H3376
27	Lock Nut - tappet adjusting screw		51K1178
28	Spring Washer - DC - rocker shaft		2A18
29	Spring - rocker arm spacing		6K556
30	Screw - locating rocker pedestal		2A258
31	Plate - locating rocker pedestal screw		2A259
32	Washer - rocker shaft		6K555
33	Washer - rocker pedestal		WA108051
34	Nut - rocker pedestal stud		GHF201
34	Nut - Rocker Pedestal	each	NH605040
36	Nut - Cylinder Head	each	CAM4545
	Nut - Brass Manifold standard type	each	GFK3436
	Nut - Brass Manifold long type	each	51K1177
	Nut - Manifold injection type	each	LYH1008
45	Cam follower set, heavy duty, set 8		2A13
46	Steel push rod, 1275, each		AEG314
	Steel push rod, 850, 998, 1098, each		2A14
