SKU

53K1471

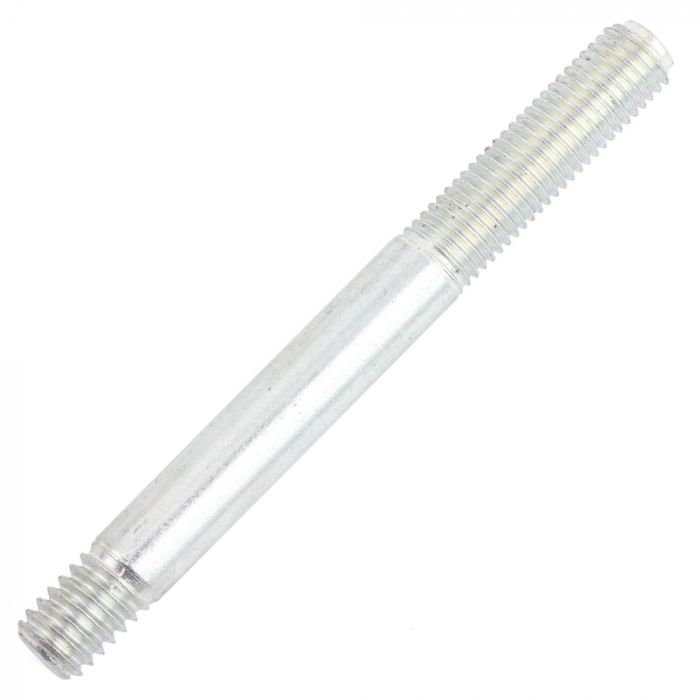

Short Stud - 5/16"UNC/UNF for Diff Cover

Name: Short Stud - 5/16"UNC/UNF for Diff Cover
SKU: 53K1471
Price: 2.700001 USD
Availability: InStock

Be the first to review this product

Special Price US$2.70 US$2.25 Regular Price US$3.50

In stock

SKU

53K1471

Stud - Differential cover to gearbox case - Short type - Mini rod type gearboxes

Buy top quality Classic Mini gearbox parts and differential spares from Mini Sport, the worlds premier online Mini store.

53K1471 Mini Short Stud - 5/16"UNC/UNF for Diff Cover

Frequently Bought Together

Short Stud - 5/16"UNC/UNF for Diff Cover
Special Price US$2.70 US$2.25 Regular Price US$3.50
Lock Tab - gearbox oil pipe blanking plate
Special Price US$4.52 US$3.77 Regular Price US$5.24
5/16UNF nut each
Special Price US$0.29 US$0.24 Regular Price US$0.38
Stud - Casing to Diff Housing Long
Special Price US$13.69 US$11.41 Regular Price US$17.27

Details

Stud - Differential cover to gearbox case - Short type - Mini rod type gearboxes

Buy top quality Classic Mini gearbox parts and differential spares from Mini Sport, the worlds premier online Mini store.

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	Case - Transmission	BHM5093
2	ÔOÕ Ring Seal - Gearbox To Block	2A3606
	Stud - engine block to gearbox	FHS2410
3	Bolt - Long	GHF102
4	Set Screw - Short	GFK5180
5	Washer - Spring	GFK1124
6	Gearbox Casing Speedo End Cover	DAM5219
7	Speedo End Cover Gasket	22A541B
8	Bolt - 5/16"UNC X 1 1/8"	SH505091
9	Washer - Spring	GFK1125
10	Nut - 5/16"UNF	GHF201
11	Speedo Drive Housing End Plate	2A3626
12	Gasket - Speedo Drive Housing End Plate	GUG705564GM
13	Set Screw - 1/4"Unc X 3/4"	SH504061
14	Stud - Differential Cover	22G1834
15	Stud - Differential Cover To Case Ð Short	53K1471
16	Stud - Flywheel Housing To Case Ð Long	22A152
17	Stud - Flywheel Housing To Case Ð Short	53K547
18	Stud - Front Cover - Long	53K1474
19	Bush - Steady Shaft	13H7286
20	Dowel - Flywheel Housing	22A97
21	Dowel - Front Cover	22A13
22	Lock Washer	42H500
23	Lock Washer	22A251
24	Washer - Spring	GFK1125
25	Nut - Differential Cover	GHF201
26	Gasket Ð Upper, Differential Cover	2A3505
27	Gasket Ð Lower, Differential Cover - Rod Change	22G1836
	Gasket Ð Lower, Differential Cover - Remote Change	2A3506
28	Bearing-Needle Roller-Idler	TUK100320
29	Selector Shaft Seal Kit	MSK017
30	Seal - Differential Cover (Selector Shaft)	AHU1672
31	Bush (Aluminium) Selector	DAM8706
32	'O' Ring Seal - Selector Bush	CDU1563
33	Boot - Selector Shaft Seal	DAM3022
	Bolt Differential Cover To Case Ð Short	DAM7760
34	Bolt Flywheel Housing To Case Ð Short	DAM7756
35	Bolt Flywheel Housing To Case Ð Long	DAM7759
36	Bolt Front Cover-Long	DAM7761
37	Oil Strainer	22A335
38	O Ring - Pipe To Strainer	22A341
39	Bolt	SH604031
40	Lock Tab	22A388
41	Bolt	GFK5180
42	Lock Tab	22A1365
43	Oil Pick Up Pipe	22G1150
44	Pick Up Pipe Gasket	22A542
45	Blanking Plate - Gearbox Oil Pipe	2A3637
46	Bolt	BH604131
47	Lock Tab	2K4874
48	Sump Plug	DAM7335
49	Sump Plug Copper Washer	22A134
	Magnetic sump plug with oil temp sender take-off	C-MAD004
