Pivot Shaft - Brake & Clutch Pedal

Name: Pivot Shaft - Brake & Clutch Pedal
SKU: 2A5880
Price: 37.704001 USD
Availability: InStock

Be the first to review this product

Special Price US$37.70 US$31.42 Regular Price US$39.79

In stock

SKU

2A5880

Mini brake and clutch pedal pivot shaft to 1989, 120mm overall length

Details

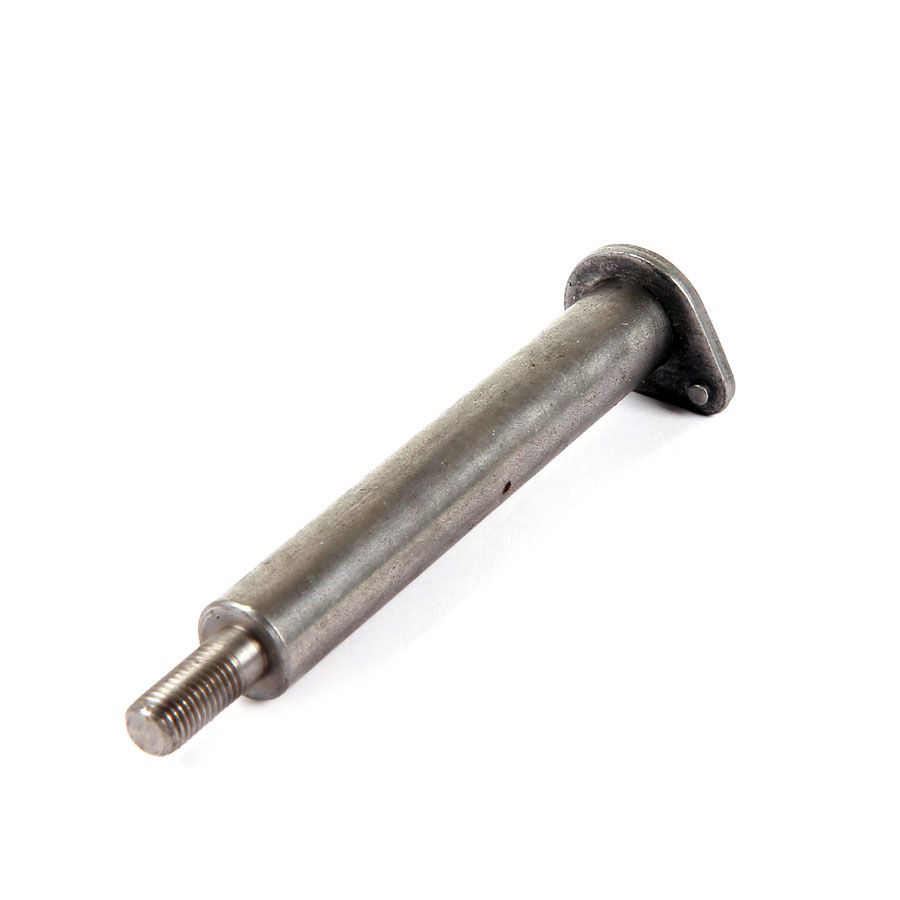

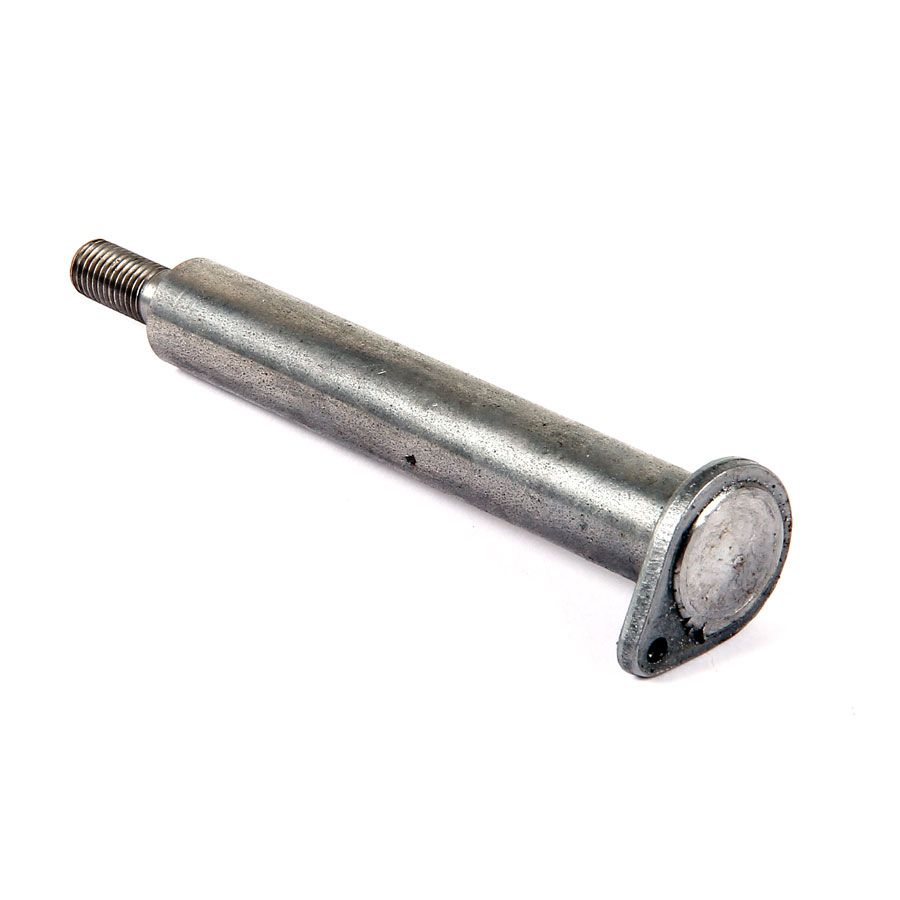

The pivot shaft for the Mini brake and clutch pedals up to 1989. This shaft has an overall length of 120mm.

Later Minis fitted with a brake servo used NAM8574 (95mm long) for right hand drive cars and NAM8524 (70mm long) for left hand drive cars.

Buy top quality Classic Mini spares and parts from Mini Sport, the worlds premier online Mini Store!

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	Brake pedal (non servo type)	- RHD to '90	NAM3112
	Brake pedal - RHD '90 on	NLA	SKB102810PMA
2	Bronze Bush - brake pedal	RHD	2A3034
	Plastic Bush - brake pedal	LHD	NAM8522
	Brake Pedal tube assembly	- LHD '90on	NAM8514
3	Pedal Box assembly - RHD '88 - '96	NLA	SKU10043
	Pedal Box assembly,	- LHD '88 - '96	SKU10042
3	Pedal Box assembly,	- RHD '97 on	SKU101220
	Pedal Box assembly,	- LHD '97 on	SKU101210
4	Pivot shaft brake/clutch pedal	RHD	2A5880
	Pivot shaft brake/clutch pedal	LHD	NAM8524
5	Nyloc nut for 2A5580		GFK3322
6	Clevis Pin - pedal to master cylinder		CLZ512
7	Return spring	- '59-'88	2A5652
	Return spring	- LHD '88on	NAM8547
8	Set Screw - bracket to body		SH605051
9	Spring Washer - screw bracket to body		GFK1125
10	Brake/Clutch pedal rubber	- up to '76	GPR104A
10	Brake/Clutch pedal rubber,	- '76 - '90	GPR107A
10	Brake/Clutch pedal rubber - '90 on	NLA	SZU1001
11	Bracket - stoplight switch,	- RHD '88 - '94 (carb)	FAM4370
11	Bracket - stoplight switch,	- RHD '91on (Injection)	SKU10011
12	Nut - stoplight bracket		GHF212
13	Washer - stoplight bracket		WC106041
15	Rubber Boot - servo control arm		NAM8567
16	Pivot Bracket - brake pedal LHD '89on	NLA	SKU10039
17	Flanged Nut - M8		FN108041
18	Brake pedal return spring,	- RHD '88on	NAM8544
19	Bracket - stoplight switch,	- LHD '91on (Injection)	SKU10012
19	Bracket - stoplight switch,	- LHD '88 - '94 (carb)	NAM8643
20	Nut - stoplight bracket to pedal box		CDU3989
21	Washer - stoplight bracket to pedal box		GFK1125
	Brake light switch,	- '76 on	13H3735
22	Return Spring - crank to servo bracket		NAM9198
23	Brake pedal crank assembly,	- '88 on	NAM8541
24	Pivot shaft - pedal crank assembly	NLA	NAM8574
25	Plastic insert for crank assembly		NAM8546
26	Clevis pin - crank to servo		NAM8540
27	Split pin for NAM8540		PS104221
28	Bracket - servo mounting		SKU10034

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	Pedal Assembly - Clutch - RHD		NAM3116
	Pedal Assembly - Clutch - LHD		NAM3115
2	Bush		2A3034
3	Bracket - Brake and Clutch - RHD	'88-'96	SKU10043
	Bracket - Brake and Clutch - LHD	carb '88-'94	SKU10040
	Bracket - Brake and Clutch - LHD	injection '91-'96	SKU10042
3	Bracket - Brake and Clutch - RHD	MPi '96on	SKU101220
	Bracket - Brake and Clutch - LHD	MPi '96on	SKU101210
4	Set Screw - mounting bracket		SH605051
5	Spring Washer - mounting bracket		GHF332
6	Pedal Rubber Pad - early		GPR105A
6	Pedal Rubber Pad -		GPR107A
6	Pedal Rubber Pad -		SZU10001
7	Shaft - Clutch And Brake Pedal		2A5880
8	Nut - Nyloc - pedal shaft		GFK3322
9	Pin - Clevis		CLZ512
10	Spring - Pedal Return	'59-'88	2A5652
	Spring - Pedal Return - RHD	'89on	NAM8544
	Spring - Pedal Return - LHD	'89on	NAM8547
11	Master cylinder - early metal tank type		AAU4969
11	Master cylinder - late plastic tank type		STC100330
12	Filler Cap		513123A
14	Kit Repair - master cylinder (2 ring type)		GRK3004
	Kit Repair - master cylinder (1 ring and cup type)		GRK3007
15	Sealing Washer		31G279
16	Copper Pipe 27.94cm (11") Long - RHD		ACP455
16	Copper Pipe 86cm (34") Long - LHD		ACP456
17	Rubber clutch hose - pre verto		GVP1020
18	Rubber clutch hose - verto		GVP1009
19	Bolt - Banjo - Hose To Slave Cylinder		C5192A
20	Copper Washer - Banjo Bolt To Banjo		3H550
21	Copper Washer - Banjo To Slave Cylinder		233220A
23	Washer - Plain - Clutch Hose To Dash		WB116101
24	Nut - Lock - Tubenut		2K8686
25	Washer - Lock - Tube - Nut		WE600101
