Clutch Oil Seal - Injection

Name: Clutch Oil Seal - Injection
SKU: LUF10005
Price: 9.168001 USD
Availability: InStock

Be the first to review this product

US$9.17 US$7.64

In stock

SKU

LUF10005

Clutch Oil Seal - Injection

Frequently Bought Together

Clutch Oil Seal - Injection
US$9.17 US$7.64
Clutch Oil Seal
US$4.27 US$3.56
Mini Verto Clutch Kit - Injection
US$177.62 US$148.02
Bush - Primary Gear Rear
US$13.00 US$10.83
OE Spec Clutch Oil Seal
US$5.71 US$4.76

Details

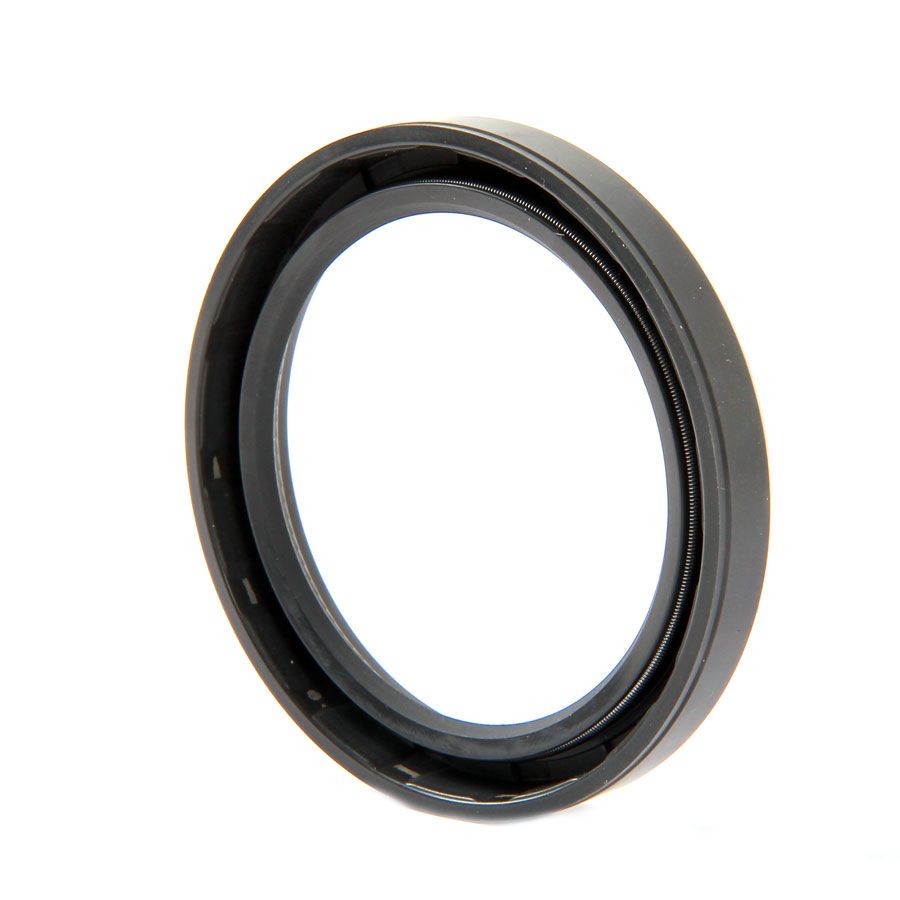

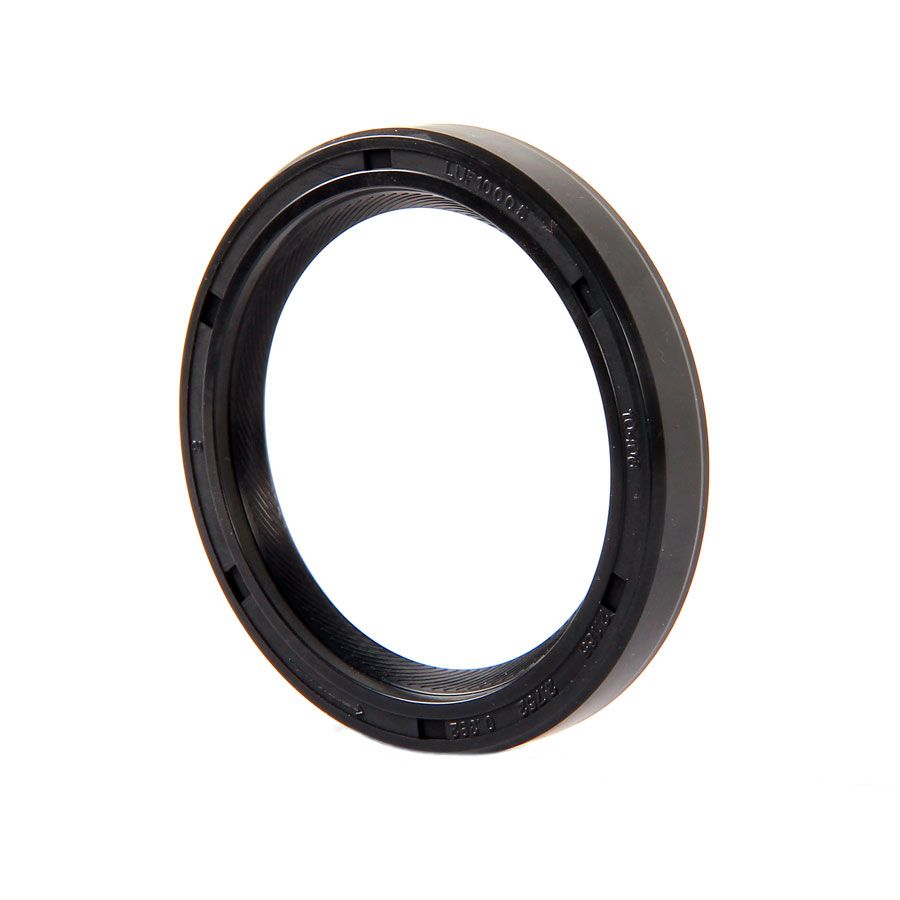

Original specification clutch oil seal gives a good fit and seal.

Fits all Injection Minis except automatic.

Buy top quality Classic Mini Clutch spares and parts from Mini Sport, the worlds premier online Mini Store!

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	Cover - clutch		AHU1106
2	Set Screw - cover to housing		DAM7755
3	Spring Washer - cover screw		GFK1125
9	Cover - timing hole	NLA	2A3635
7	Set Screw - timing hole cover		SH604041
8	Spring Washer - timing cover screw		GFK1124
29	Flywheel Housing	A+ carburettor with breather	DAM6259
29	Flywheel Housing	Injection	TRD10015
35	Seal - oil - clutch		13H2934
35	Seal - oil - clutch		LUF10005
30	Gasket - housing to gearbox case		22A2237B
32	Spring Washer - screw housing		GFK1125
36	Bolt - housing to cylinder block		DAM7758
31	Set Screw - housing to cylinder block		DAM7753
38	Locktab Washer		22A1762
34	Locktab Washer		22A1761
33	Locktab Washer	NLA	2A3521
40	Nut - flywheel housing stud		GHF201
41	Spring Washer		GFK1125
37	Locktab Washer		22A1241
39	Dowel Reataining Plate	NLA	22A1299
5	Set Screw - Clutch Arm Adjustment		GFK5180
10	Lock Nut - Clutch Arm Adjustment Screw		FNZ604
17	Clutch arm - long, pre verto		22A2204
17	Clutch arm - short, verto		DAM5355
15	Washer - plain		GFK1115
19	Push rod - arm to cylinder - pre verto & verto models		13H396
14	Spring Anchor - clutch arm end		2A3601
15	Washer - plain		GFK1114
12	Return spring - Clutch arm - pre verto		1G5999
11	Spring Anchor - cylinder end		2A3600
13	Clevis Pin - Arm to pushrod		CLZ518
4	Clevis Pin - Verto Clutch arm to flywheel housing		CLZ628
16	Split Pin - for clevis pins		PS104221
22	Slave cylinder - pre verto type		GSY110
22	Slave cylinder - verto type		GSY118R
18	Seal repair kit for GSY110		GRK4008
18	Seal repair kit for GSY118		GRK4001
23	Bleed Screw		3H2428
21	Screw - clutch cylinder to plate		GFK5191
20	Spring Washer		MSLMS0047
25	Bracket for verto slave cylinder		DAM5992
24	Set Screw - bracket to flywheel housing		GHF165
28	Distance Piece		21A1108
26	Set Screw - bracket to distance piece and clutch cover		SH604141
