SKU

12G2629

Pivot Pin Timing Chain Tensioner A+

Name: Pivot Pin Timing Chain Tensioner A+
SKU: 12G2629
Price: 4.164001 USD
Availability: InStock

Special Price US$4.16 US$3.47 Regular Price US$4.93

In stock

SKU

12G2629

Pivot pin timing chain tensioner a+

Frequently Bought Together

Pivot Pin Timing Chain Tensioner A+
Special Price US$4.16 US$3.47 Regular Price US$4.93
Timing Chain Tensioner Plate A+
Special Price US$10.97 US$9.14 Regular Price US$12.90
Timing Chain Tensioner Pad A+
US$10.48 US$8.73

Details

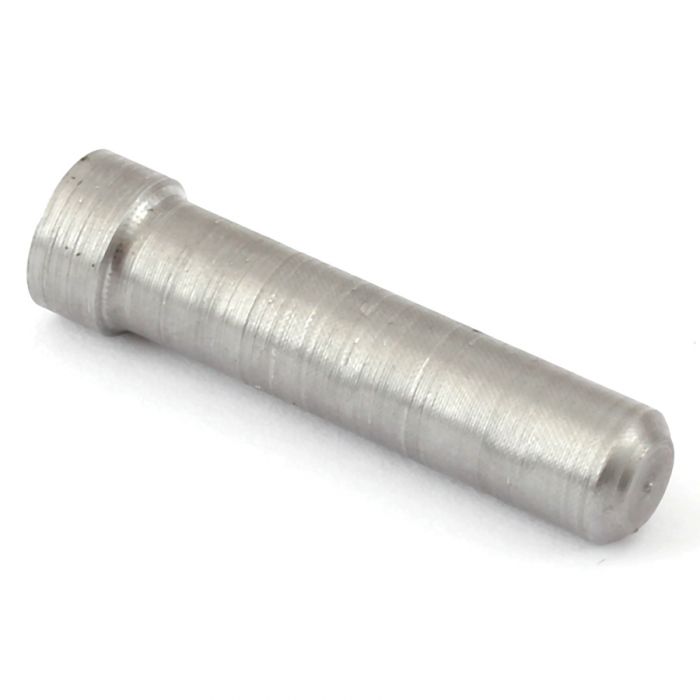

Pivot pin for the timing chain tensioner pad (12G2621) used on the simplex timing gear set up for Mini A+ (Plus) Engines.

A+ engines were fitted to:

Buy top quality Classic Mini Simplex timing spares and parts from Mini Sport, the worlds premier online Mini store!

No.

Description

Notes

Part No.

1	Engine front bearer plate	A +	12G2626
2	Gasket - front plate	A series	12G619B
2	Gasket - front plate	A +	GUG705554GM
3	Set Screw - front plate to bearing cap	Simplex gears	53K2016
3	Set Screw - front plate to bearing cap	Duplex gears	CMZ407
4	Washer		GHF321
5	Camshaft locating plate		TAM2014
6	Set Screw - front plate to crankcase		GHF117
7	Shakeproof Washer		GHF321
8	Simplex Camshaft Gear		12G4337
8	Duplex Camshaft Gear		12G1397
9	Woodruff Key - camshaft gear		WKN505
10	Lock Washer - camshaft		2A759
11	Nut - camshaft		6K629
12	Simplex Timing Chain		3H2127
	Duplex Timing Chain		2H4905
13	Chain Tensioner Pad		12G2621OE
14	Pivot Pin - chain tensioner		12G2629
15	Mounting Plate - chain tensioner		12G2628
16	Set Screw - tensioner bracket to crankcase		GHF120
17	Spring Washer		GFK1125
18	Washer		GFK1114
19	Timing cover 1275cc - (with oil separator)	'90 on	LJR10168
20	Oil Seal - timing cover		88G561
	Oil Seal - timing cover		88G561OE
21	Timing cover gasket - 10 bolt	A Series	12A956B
21	Timing cover gasket - 11 bolt	A+	12G2625
22	Set Screw - timing cover to plate		SH604031
23	Washer		WC106041
24	Spring Washer		GFK1124
25	Set Screw - timing cover, plate, crankcase		GHF120
26	Spring Washer		GFK1125
27	Washer		GFK1114
28	Set Screw - timing cover to plate		GHF120
30	Spring Washer		GFK1125
31	Washer		GFK1114
29	Nut - cover to front plate		GHF201
